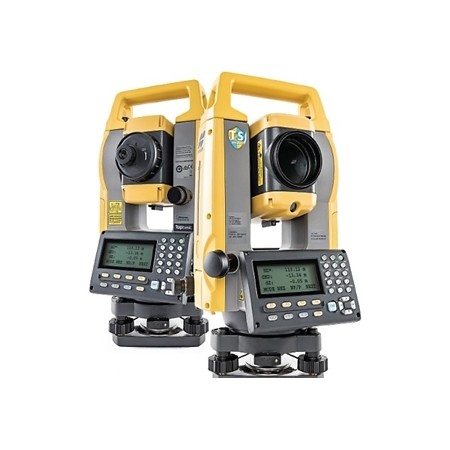

Total Station Topcon GM 101
GM-100 Series Total Station
Sleek Design, Powerful Performance
This powerful, cost efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a rugged housing and extented battery-life you’ll be able to handle even the toughest conditions.
The GM-100 series also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.
Features include
- 6,000m prism range 1.5mm accuracy
- Easy access USB memory with 32 GB storage
- 1″ angle accuracy encoder system with exclusive IACS
- Rugged, waterproof/dustproof magnesium-alloy housing
- 28 hour battery life (eco mode)
Features Topcon GM-101 Reflectorless Total Station
- Advanced security and maintenance with TSshield™
- Bluetooth communications
- Fast and powerful EDM
- 1,000 m non-prism range
- 6,000 m prism range
- Dual axis compensation
- EDM accuracy (to prism) 1.5mm + 2ppm; reflectorless 2mm + 2ppm
- Long battery life – 28 hours (Eco mode)
- Up to 32GB storage
- Laser plummet
- Compatible with industry standard thumb drives
- Waterproof/dustproof IP66 design handles the toughest environment
- Magnesium-alloy housing providing stable angle accuracy
- Single graphic display and alphanumeric keyboard (standard); dual keyboards optional.
Specifications Topcon GM-101 Reflectorless Total Station
Telescope
- Magnification / Resolving power : 30x / 2.5″
Others
- Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle measurement
- Minimum Display : 0.5″/1″ (0.0001 / 0.0002gon, 0.002 / 0.005mil)
Accuracy (ISO 17123-3:2001) : 1″
- Dual-axis compensator : Dual-axis liquid tilt sensor, working range: ±6′
- Collimation compensation : On/Off (selectable)
Distance measurement
- Laser output* : Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring range (under average condi tions*2)
- Reflectorless*3 0.3 to 800m (2,620ft.) / Under good conditions*4 : 1,000m (3,280ft.)
- Reflective sheet*5*6 RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.) RS10N-K: 1.3 to 100m (4.3 to 320ft.)
- Mini prism 1.3 to 500m (4.3 to 1,640ft.)
- One prism 1.3 to 5,000m (4.3 to 16,400ft) / Under good conditions*4 : 6,000m (19,680ft.)
Minimum Display
- Fine : 0.0001m (0.001ft. / 1/16in.) / 0.001m (0.005ft. / 1/8in.) (selectable)
- Coarse : 0.001m (0.005ft. / 1/8in.) / 0.01m (0.02ft. / 1/2in.) (selectable)
- Tracking / Road : 0.01m (0.02ft. / 1/2in.)
Accuracy*2 (ISO 17123-4:2001) (D=measuring distance in mm)
- Reflectorless*3 (2 + 2ppm x D) mm*8
- Reflective sheet*5*6 (2 + 2ppm x D) mm
- Prism*7 (1.5 + 2ppm x D) mm
Measuring time*4*9
- Fine 0.9s (initial 1.5s)
- Coarse 0.6s (initial 1.3s)
- Tracking 0.4s (initial 1.3s)
Including |
unit |
| Topcon GM
Batterai Charger flashdisck + software Prisma Single Prisma Polygon Pole / Stick Prisma Alumunium Tripod Sertifikat Kalibrasi Garansi 1tahun |
1 1 1 1 1 1 1 2 1 1 |
