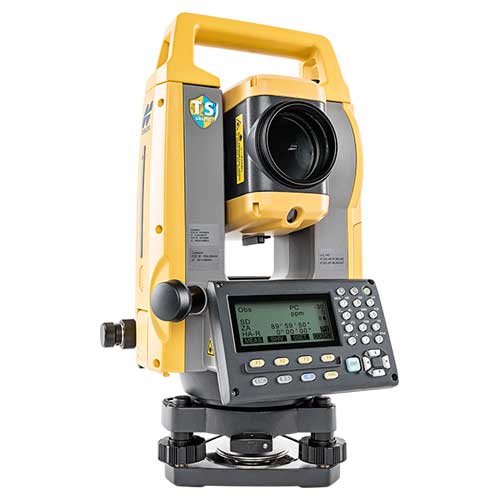

Total Station Topcon GM 103

Kategori: Total Station | Dilihat: 85 Kali
Harga: -
Beli
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Whatsapp SMS Telp
Kode Produk: Stok Tersedia - 21-05-2025
Share: Facebook Twitter Google+
Detail Produk

Features

• Advanced security and maintenance with TSshield™
• Bluetooth communications
• Fast and powerful EDM
• 1,000 m non-prism range
• 6,000 m prism range
• Dual axis compensation
• EDM accuracy (to prism) 1.5mm + 2ppm; reflectorless 2mm + 2ppm
• Long battery life – 28 hours (Eco mode)
• Up to 32GB storage
• Laser plummet
• Compatible with industry standard
thumb drives
• Waterproof/dustproof IP66 design
handles the toughest environments
• Magnesium-alloy housing providing
stable angle accuracy
• Single graphic display and alphanumeric keyboard (standard); dual keyboards optional

Spesifikasi Total Station Topcon GM-103 akurasi 3"

Angle Measurement
  • Min. Resolution/Accuracy
  • GM-101 : 1”/3"
  • IACS : Standard on 1” and 2” models
  • Compensation : Dual-axis compensator
Distance Measurement
  • Prism EDM Range : 6,000 m
  • Prism EDM Accuracy : 1,5 mm + 2 ppm
  • Non-Prism Range : 1,000 m
  • Non-Prism Accuracy : 2 mm + 2 ppm | (0,3 – 200 m)
  • Measuring Time Fine: 0,9 sec | Rapid: 0,6 sec | Tracking: 0,4 sec
Communications
  • LongLinkTM is not supported
  • Bluetooth® Class 1,5/10 m
  • USB 2.0 Slot (Host)
  • RS-232C Serial
General
  • Display Single Backlit LCD | (Dual display optional)
  • Battery Operation : Up to 28 hours
  • Dust/Water Rating : IP66
  • Wireless Connection : Bluetooth® Class 1.5
  • Operating Temp: -20oC to 60oC | Special Arctic version available : (-35 to 50oC) | Laser : plummet standart. | Optional optical plummet available in some global location

Standard Package Components :

  • Main unit • Battery (BDC46C)
  • Battery charger (CDC68A)
  • Power Cable • Lens cap • Lens hood
  • Tool pouch • Precision Screwdriver
  • Lens brush • Hexagonal wrench ×2
  • Cleaning cloth • Quick Manual
  • Laser caution sign-board
  • Carrying case • Carrying strap

Available Accessories:

  • 2 x Aluminum Tripod
  • 1 x Prisma Polygon
  • 1 x Range Pole
  • 1 x Single Prism
  • 1 x Cable Data
  • 1 x Software Data

Topcon GM-103 – Datasheet
