Total Station Titan TTS2
Detail Produk

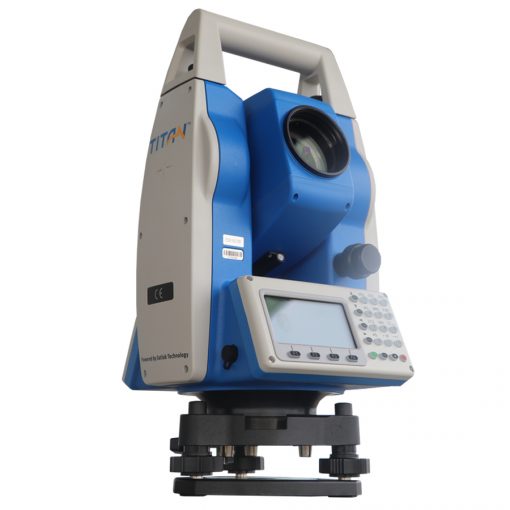

Titan TTS2 Total Station Reflectorless
Titan TTS2 Dual-axis reflectorless total station. 2” accuracy with 600m range. Big storage, can be extended up to 32GB. Convenient data import and export with the USB port. Compact and Lightweight Designed, easy to carry and setup. With a powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, TTS2 improves the speed and distance of measurement efficiently.
Features Titan TTS2 Total Station Reflectorless :
- Resolution：320×240 pixels
- Weight：≤5.5kg
- Battery：7.4VDC/3000mAH
- OR wa us 081274087466
- Operation：Optimally 18 hours
- Minimum Readout：5″
- Method：Absolute encoding
- Accuracy：2″
- Compensator System：Dual-axis
- Compensator Range：±3′
- Compensator setting accuracy：1″
Specifications Titan TTS2 Total Station Reflectorless :
|
ANGLE MEASUREMENT
| Minimum Readout Method Accuracy Compensator System Compensator Range Compensator Setting Accuracy |
5” (1.5 mgon) Absolute encoding Dual-axis ±3’ 1” |
DISTANCE MEASUREMENT WITH REFLECTOR
| Single Prism Three Prisms Reflective Sheet Accuracy Measuring Time |
3,000m 5,000m 800m 2mm + 1.5ppm Fine 1s Quick 0.8s Tracking 0.5s |
DISTANCE MEASUREMENT WITHOUT REFLECTOR
| Range Single Prism Accuracy Measuring Time |
600m > 7,500m 2mm + 2ppm 1.5s |
TELESCOPE
| Magnification Image Field of View Min. Focusing Range Reticle Effective Diameter of Objective |
30x Erect 1°20’ (2.4m at 100m) 1.5m Illuminated 40mm/50mm (EDM) |
LASER PLUMMET
| Type Centering Accuracy |
Laser point, 4 brightness levels adjustment/ Optical plummet (optional) 1mm at 1.5m instrument heigh |
OPERATION
| System Display Keyboard Temperature and Pressure Sensor |
Real-time operating system Dual face high resolution 192 black and white display 2 sides alpha-numerical back-lit keyboard No |
GENERAL
| System Display Keyboard Temperature and Pressure Sensor |
Real-time operating system Dual face high resolution 192 black and white display 2 sides alpha-numerical back-lit keyboard No |
GENERAL
| Environmenta | P65 environmental protection Humidity 95% (non-condensing) Temperature -20°C to 50°C Operating -40°C to 70°C Storage |
Including |
unit |
| Titan TTS2 Batterai Charger flashdisck + software Prisma Single Prisma Polygon Pole / Stick Prisma Alumunium Tripod Sertifikat Kalibrasi Garansi 1tahun |
1 1 1 1 1 1 1 2 1 1 |
