Jual Total Station South A1 Android

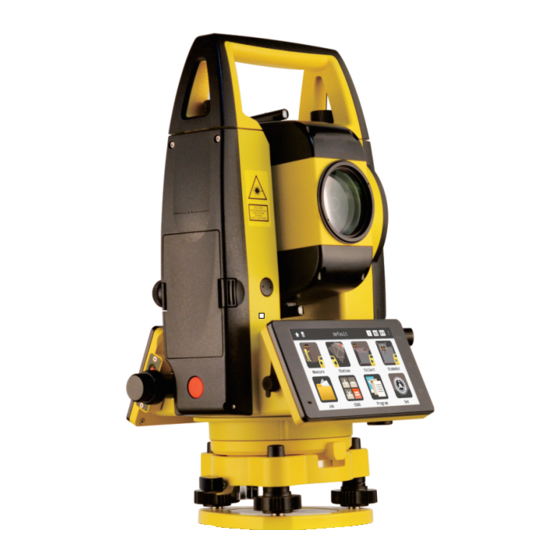

Total Station South A1

● 1”/2” Accuracy, 1000m Reflectorless EDM
● Android O.S, Iconic Onboard Software
● 5.0 Inch LCD Touch Screen with Graphical Guidance
● Cable-Free Connection by Wireless Bluetooth
● Auto Height & Guide Light (Optional)

5dfb3a54a6a48

Specification

Distance Measurement	Reflectorless	1000m
	Single Prism	5000m
	Accuracy: Non Prism	2+2ppm
	Accuracy: Prism	A1 1″ : 1+1ppm A1 2″ : 2+2ppm
	Sheet	2+2ppm
	Measurement Time	1.2s In Fine 0.2s In Tracking
	Atmospheric Correction	Manual Input, Auto Correction
	Prism Constant	Manual Input, Auto Correction
	Temperature Correction	Sensor Reading
	Distance Reading	Max: 99999999.999m Min: 1mm
Angle Measurement	Accuracy	A1 1″ : 1″ A1 2″ : 2″
	Method	Absolute, Continuous
	Disk Diameter	79mm
	Detection Method	V: Quadruple, H: Quadruple
	Angle Reading	Min: 0.1″
Telescope	Image	Erect
	Tube Length	152mm
	Effective Aperture	45mm (EDM 47mm)
	Magnification	30x
	Field Of View	1°30′
	Resolving Power	3″
	Minimum Focus Distance	1.5m
	Reticle Illumination	Not Adjustable
Keyboard And Display	Keyboard	3 Keys
	Display	5.0 Inches, Color Touch LCD
	Resolution	1280*720 dpi
	Position	Face 1, Face 2
Operation System	Operation System	Andorid 5.1
	Processor	MT6735
	Memory	ROM: 16GB, RAM: 2GB
Interface	WIFI	2.4G WIFI
	Bluetooth	BT4.0
	SD Card	None
	Serial Port	Yes
	Mini USB	None
	Mirco USB	Yes
	USB Flash Disk	Yes
	SIM Card	Yes, 4G, 3G
Compensator	System	Liquid, Dual Axis
	Working Range	±6′
	Accuracy	1″
Plummet	Laser Plummet (Default)
	Accuracy	±1.5mm @1.5m
	Laser Brightness	5 Levels Adjustable
	Wavelength	635nm
	Laser Class	Class 2
	Laser Power	0.5mW
	Optical Plummet (Optional)
	Image	Erect
	Magnification	3x
	Focusing Range	0.5m —
	Field Of View	5″
	Accuracy	–
Battery	Type	Lithium
	Voltage	7.4V
	Operating time	8 hours
Vial	Plate Vial	30″ /2mm
Vial	Circular Vial	8′ /2mm
General	IP Rate	IP55
	Temperature Range	-20°C — +50°C
	Dimension	206200353mm
	Weight	6.0kg
	Others	Trigger Key
	Others	Guide Light Optional
	Others	Auto Height Optional

kami juga menjual berbagai macam alat lainnya seperti : Radio Komunikasi, Alat Test Uji beton, Perahu Karet, Gps ( Global Positioning System ), Alat Sambung Fiber Optik, Laser Distance, Levelling Laser, Alat Civil, Alat Klimatologi seperti : Handy Talkie, Radio Rig, Repeater, Antena, Hammer Test, Perahu Sillinger 470 Pro, Perahu Zebeck, Gps Geodetik, Gps Hanheld, Fusion Splicer, OTDR, Alat Ukur Digital, Cross Line Laser dll.
