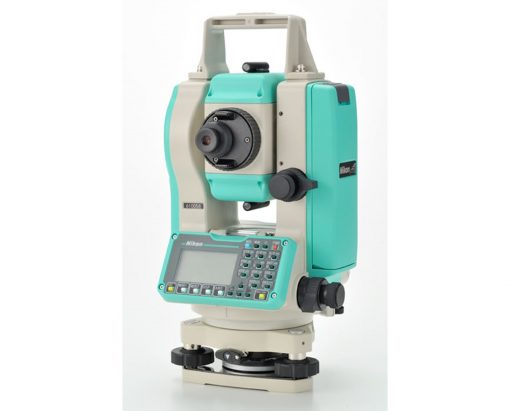

Nikon NPL-322+2P Total Station

NPL-322+ Series
The Nikon NPL-322+ Series of mechanical total stations includes a 2″ dual face and 5″ single face models. Both NPL-322+ models feature dual axis compensation to correct for errors in
tilt in the horizontal and vertical axes, a reflectorless EDM with 400 meter (1300 feet) range, wireless Bluetooth connections to external data collectors and 50,000 point onboard storage.

Using the same rechargeable long life Li-ion battery as the Nivo series, combined with low power consumption design, the NPL-322+ provides the longest possible time in the field. For
convenience, the Nikon NPL-322+ total stations include two batteries and a dual charger, to support even the longest of working days.

The NPL-322+ Total Station delivers an economic, versatile, and easy-to-use platform to ensure you get the job done right. Nikon’s legendary optics effectively allow in more light to give you
brighter, clearer images. You’ll see the difference when you look through a Nikon Total Station even in the low-visibility conditions typical in the field. You’ll see much more detail and much
less distortion, especially over longer distances. Better optics help you aim more precisely, and they’re much easier on your eyes – something you’ll really appreciate on long workdays.

Features Nikon NPL-322+2P Total Station :

2″ and 5″ angle accuracies
Prism and reflectorless measurements
Please don’t hesitate to call us @0265 3171044
Fast, accurate EDM
Convenient and long-lasting Li-ion battery
OR wa us @0813-9895-5475
Easy-to-use keypad
Rugged and lightweight
Bluetooth enabled
Dual axis compensation

Specifications Nikon NPL-322+2P Total Station :

Distance measurement

Range with Nikon specified prisms
– Good conditions (No haze, visibility over 40 km (25 miles)) With reflector sheet (5 × 5 cm):
1.5 m to 200 m (4.9 ft to 787 ft)
With single prism 6.25 cm (2.5 in):
3,000 m (9,840 ft)
Range reflectorless mode
– KGC (18%)1
Good: 250 m (820 ft)
Normal: 200 m (656 ft)
Difficult: 150 m (492 ft)
– KGC (90%)1
Good: 400 m (1312 ft)
Normal: 350 m (1148 ft)
Difficult: 250 m (820 ft)
Accuracy ISO 17123-4 (Precise mode)
– Prism2 : ±(2+2 ppm × D) mm
– Reflectorless/Reflector sheet3 :
±(3+3 ppm × D) mm
Measuring interval4
– Prism mode
Precise mode: 1.1 sec.
Normal mode: 0.8 sec.
– Reflectorless mode
Precise mode: 1.2 sec.
Normal mode: 1.0 sec.
– Least count
Precise mode: 1 mm (0.002 ft)
Normal mode: 10 mm (0.02 ft)

Angle Measurement

ISO 17123-3 accuracy (horizontal and vertical): 2″/0.6 mgon, 5″/1.5 mgon
Reading system: Photoelectric detection by incremental encoder
Circle diameter: 88 mm (3.46 in)
Horizontal angle: 2″:Diametrical, 5″:Single
Vertical angle: Single
Minimum increment (Degree, Gon, MIL6400):
Degree: 1/5/10″, Gon: 0.2/1/2 mgon,
MIL6400: 0.005/0.02/0.05 mil

Telescope

Tube length: 125 mm (4.9 in)
Image: Erect
Magnification: 30×
(18x/36x with optional eyepieces)
Effective diameter of objective: 45 mm (1.77in)
– EDM: 50 mm (1.97 in)
Field of view: 1°20′
Resolving power: 3″
Minimum focusing distance: 1.5 m (4.9 ft)
Laser Pointer: Coaxial Red Light Tilt Sensor
Type: Dual axis
Method: Liquid-electric detection
Compensation range: ±3′
Communications
Communication ports: 1 x serial (RS-232C)
Wireless Communications
Integrated Bluetooth
General Specifications
Level vials
– Sensitivity of Plate level vial: 30″/2 mm
– Sensitivity of Circular level vial: 10’/2 mm
Optical plummet
– Image: Erect
– Magnification: 3×
– Field of view: 5°
– Focusing range: 0.5 m (1.6 ft) to ∞
Display:
2″:Both sides, backlit, graphic LCD
(128 × 64 pixel),
5″:Single side, backlit, graphic LCD
(128 × 64 pixel)
Point memory: 50,000 records
Dimensions (W x D x H): 168 mm x 173 mm x
335 mm (6.6 in x 6.8 in x 13.1 in)
Weight (approx.)
– Main unit (without battery): 4.9 kg (10.8 lb)
– Battery: 0.1 kg (0.2 lb)
– Carrying case: 2.5 kg (5.5 lb)
– Dual charger and AC adaptor: 0.6 kg (1.3 lb

Power

Clip-on Li-on battery (x2 incl.)
– Output voltage: 3.8 V DC
Operating time5 (per battery)
– approx. 4.5 hours
(continuous distance/angle measurement)
– approx. 11 hours (distance/angle
measurement every 30 seconds)
– approx. 22 hours
(continuous angle measurement)
Charging time
– Full charge: 4 hours
– External power supply: N/A

Environmental

Ambient temperature range: –20 °C to +50 °C
(–4 °F to +122 °F)
Atmospheric correction
– Temperature range: –40 °C to +60 °C
(–40 °F to +140 °F)
– Barometric pressure: 400 mmHg to
999 mmHg/533 hPa to 1,332 hPa/15.8 inHg to 39.3 inHg
Dust and water protection: IP54

Certification

Class B Part 15 FCC certification,
CE Mark approval.
Laser safety IEC60825-1:2007
Reflectorless mode: Class 1
Laser Pointer: Class 2
Prism mode: Class 1
Bluetooth type approvals are country specific
(1) Kodak Gray Card, Catalog number E1527795
(2) ±(2+3 ppm × D) mm –20 °C to –10 °C, +40 °C to +50 °C
(–4 °F to +14 °F, +104 °F to +122 °F) 1.5m to 5m ± (5 + 3
ppm × D) mm
(3) 1.5m to 5m ± (10 + 3 ppm × D) mm
(4) Measuring time may vary depending on measuring distance
and conditions. For the initial measurement, it may take a
few seconds.
(5) Battery life specification at 25 °C (77 °F). Operation time
may be shorter if battery is not new. Operation time may be
shorter in low temperatures.

Including

unit

Nikon NPL-322 2P

Charger+Batery

Kabel Data+CD Software

Sertifikat Kalibrasi

Garansi 1 Tahun
