The Nikon N SeriesTotal Station is an advanced EDM designed to make surveying quick and easy. You have two options to operate the device: the prism mode has a range of 13,000 feet while the reflectorless option works up to 1,900 feet. You can choose between 2” and 5” accuracy so that the total station will fit your application.

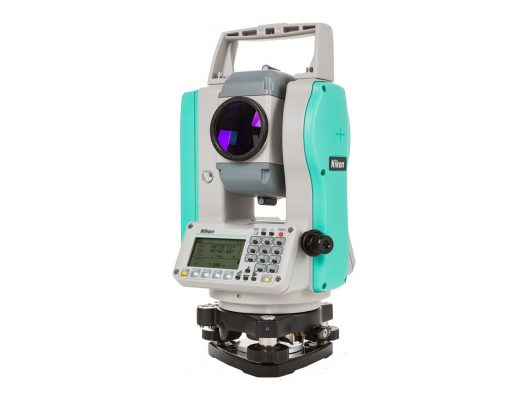

Total Station Nikon N2 Reflectorless
Detail Produk
Easy Operation The N Series comes with a laser pointer for faster locking on target. Nikon’s onboard software collects up to 50,000 data points and can be transferred wirelessly via Bluetooth. Simply tap your phone on the NFC sensor, and it will automatically connect to the total station.
The Total Station File Transfer app for iOS and Android devices allows you to transfer coordinate data to the N Series. It also captures the collected information from the EDM for transmission to your office. All these features make your work more efficient and save you time.
Rugged and Reliable Built to standard with IP55 dust and water protection, you can confidently use this in the field even in inclement weather. For added security, a rain/dust cover is included in the package for harsher environs. In cases where you need assistance, Nikon’s excellent customer support and service network will ensure that your devices are up to the task.
Flexible Battery and Power Options The device comes with a single replaceable Li-ion battery that lasts up to 14 hours of continuous use. You can use any Type-C USB charging port, like the charger on your vehicle or your power bank, to recharge the batteries.
Configuration Options
The Nikon N Series Total Stations comes in two options. Please choose your preference from the menu above.
- HQA46700: 2” Accuracy (Dual Display)
- HQA46710: 5” Accuracy (Single Display)
Specifications Total Station Nikon N2 Reflectorless :
| DISTANCE MEASUREMENT Range with Nikon specified prisms1 With reflector sheet (5 × 5 cm).. 1.5 m to 300 m (4.9 ft to 984 ft) With single prism 6.25 cm (2.5 in) .. 4,000 m (13,123 ft)Range reflectorless mode (Nikon N) KGC (18%) Good1.. 400 m (1312 ft) Normal².. 300 m (984 ft) Difficult³.. 235 m (771 ft)KGC (90%) Good¹.. 600 m (1968 ft) Normal².. 500 m (1640 ft) Difficult³.. 250 m (820 ft) Accuracy4 Measuring interval7 Reflectorless mode (Nikon N) |
Least count Precise mode… 0.1 mm (0.0002 ft) Normal mode …. 1 mm (0.002 ft)ANGLE MEASUREMENT Accuracy8 (horizontal and vertical) … 2“ (0.6 mgon), or 5“ (1.5 mgon) Reading system .. Photoelectric detection by incremental encoder Circle diameter… 88 mm (3.46 in) Horizontal angle… 2”:Diametrical, 5”:Single Vertical angle… Single Minimum increment… 1/5/10” (0.2/1/2 mgon)TELESCOPE Tube length… 125 mm (4.9 in) Image… Erect Magnification… 30× (18x/36x with optional eyepieces) Effective diameter of objective … 45 mm (1.77in) Field of view… 1°20‘ Resolving power … 3” Minimum focusing distance…. 1.5 m (4.9 ft) Laser Pointer (Nikon N)… Coaxial Red Light TILT SENSOR COMMUNICATIONS WIRELESS COMMUNICATIONS |
Including |
unit |
| Nikon N
Batterai Charger flashdisck + software Prisma Single Prisma Polygon Pole / Stick Prisma Alumunium Tripod Sertifikat Kalibrasi Garansi 1tahun |
1
1 1 1 1 1 1 2 1 1 |
