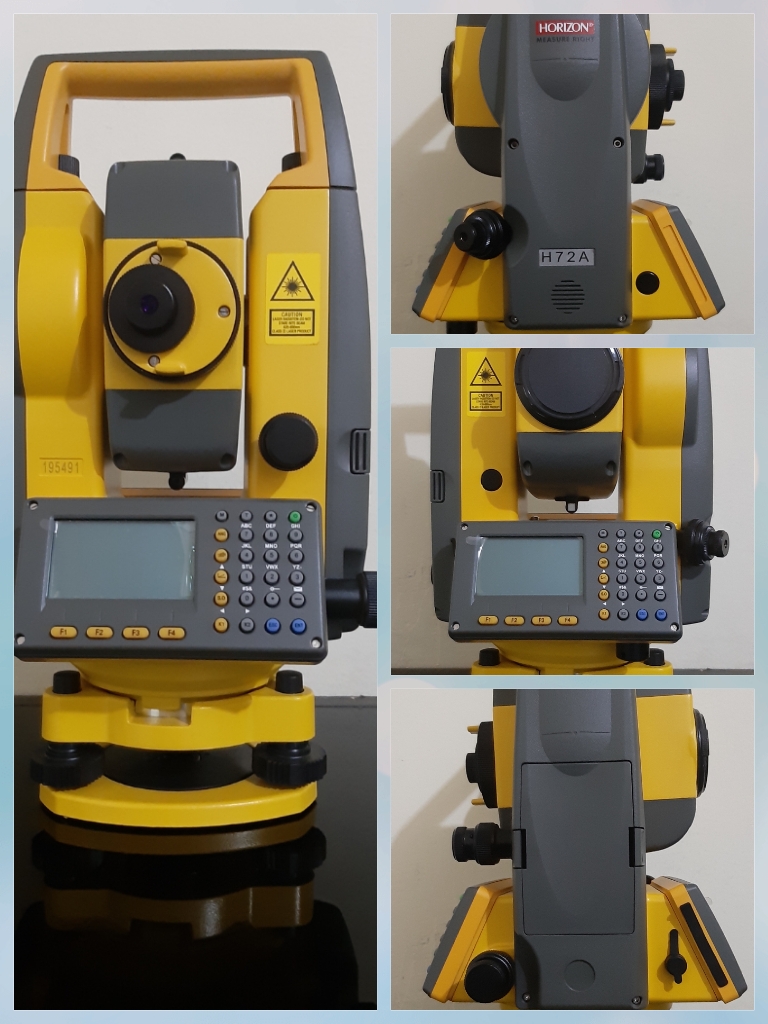

Total Station Horizon H72+

Total Station Horizon H72+
Type  : Infra-red / Reflectorless
Laser class : Visible Laser: Class III a (3R) (Reflectorless)/ Class II (2) (Prism, Retro-target)
Conformity :  IEC 60852-1:2001/ EN 60825-1: 1994 +A11 : 1996(CE-Test Standard: EN 61000-6-1: 2007 &EN 61000-6-1: 2003 as shown in the Test Report Number: SHEMO09080087001)

Telescope : Fully Transiting, Coaxial sighting and Distance measuring optics. Image: Erect. Magnification 30x. Objective aperture: 45mm (EDM:50mm).Resolving power: 3”. Field of view: 1º 30’ . Minimum focus: 1.2m, Reticle glass: ∞ mark printed. Reticle illumination: 5 brightness levels

Angle Measurement : Photoelectrical absolute encoder scanning. Both circles adopt diametrical detection
Display resolution : 1"/5" selectable
Angle Accuracy (ISO 17123-3) : 2"

Distance measurement : Modulated laser type: 0.670μm, Basic Frequency: 60MHz, Coaxial EDM, Laser spot: 7 x 14mm/ 20m
Unit of Measurement : Meters/ Feet Selectable

Measurement range using
a. Single Prism 4500m
b. Triple Prism6000m
c. Mini prism (25.4mm)1500m
d. HORIZON retro target1200m
e. Reflectorless (Long range)900m
f. Reflectorless (Standard range)600m
g. Display resolution1mm

Distance Measuring Accuracy
a. Fine mode with prism  2mm + 2ppm x D
b. Track mode with prism 3mm + 2ppm x D
c. Reflectorless mode (LR/SR) 3mm + 2ppm x D/ 5mm + 2ppm x D
