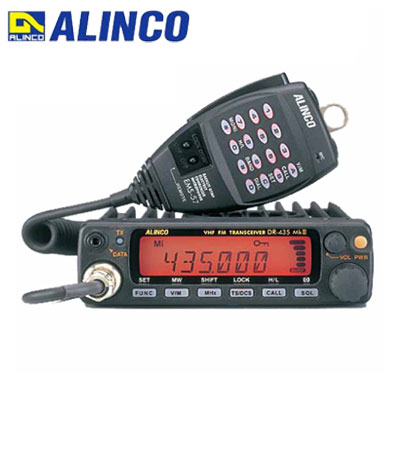

Radio Rig Alinco DR-435
Detail Produk
Feature Radio Rig Alinco DR-435 :
- 100 saluran memori dan 1 panggilan cepat.
- +/- 5ppm stabilitas frekuensi.
- 35 watt, pengaturan daya High/ Middle/ Low.
- Impedansi antenna 50 Ohm.
- Suhu Penggunaan -10 – +60c (14 – 140F).
- CTCSS, DCS (encode+decode), DTMF encode.
- Mode FM (16K0 & 8K50F3E).
Specifications Radio RIG Alinco DR-435
| General : |
| Frequency range: | TX: 430.000 – 449.995 MHz RX: 350.000 – 511.995MHz |
| Operating mode: | 16K0F3E (FM)/8K50F3E (Narrow-FM) |
| Channel steps: | 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz |
| Memory channel: | 100 channels + 1 quick recall (CALL) |
| Antenna impedance: | 50ohm unbalanced |
| Microphone impedance: | 2K ohm |
| Frequency stability: | +/- 5ppm |
| Rated voltage: | 13.8V DC +/- 15% (11.7-15.8V) |
| Current: | Transmit: approx. 10.0A Receive: approx. 600mA (Max) 400mA (Squelched) |
| Operating temperature: | -10digC to +60digC (+14digF to 140digF) |
| Ground: | Negative ground |
| Dimensions (w/o projection): | 142(W) x 40(H) x 174(D) mm 5.59″(W) x 1.57″(H) x 6.85″(D) |
| Weight: | Approx. 1.0Kg (35.3oz) |
| Transmitter | |
| Power Output: | 35W(HI) 20W(MID) 5W(LOW) |
| Modulation system: | Variable reactance |
| Spurious emission: | Less than -60dB |
| Maximum frequency deviation: | +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) |
| Receiver | |
| Receive system: | Double-conversion superheterodyne |
| Sensitivity (-12dB SINAD): | -12.0 dBu (0.25uV) or less |
| Intermediate frequency: | 1st IF 30.85MHz, 2nd IF 455 KHz |
| Squelch sensitivity: | -16.0 dBu (0.1 uV) |
| Selectivity (-6 dB): | 12 KHz or more 6 KHz or more (Narrow mode) |
| Selectivity (-60 dB): | 28 KHz or more 14 KHz or more (Narrow mode) |
| Audio output power: | 2.0 W (8 ohm, 10% distortion) |
Complete with Radio RIG Alinco DR-435 :
- Bracket
- Cable Power/DC
- Microphone
- Manual Book
Alinco DR-435 – Manual
