Kabel Belden RG8 Coaxial Belden 9913

Kategori: Radio Komunikasi | Dilihat: 105 Kali
Harga: -
Beli
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Whatsapp SMS Telp
Kode Produk: Belden 9913 Stok Tersedia - 19-06-2025
Share: Facebook Twitter Google+
Detail Produk

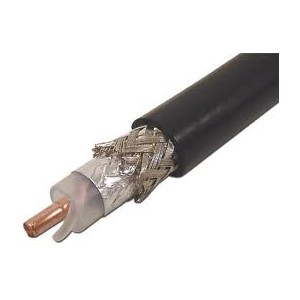

Kabel Belden RG8 9913 50 Ohm USA,10 AWG solid .108 “konduktor tembaga telanjang, isolasi polietilen semi-padat, Duobond® II, pelindung kepang tembaga kaleng (cakupan 90%), jaket PVC.

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: Low Loss RG-8 50 Ohm Wireless & Antenna

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
10 Solid BC – Bare Copper 0.108 in 1
Conductor Count: 1
Conductor Size: 10 AWG
Insulation
Material Nominal Diameter
Semi-Solid PE – Semi-Solid Polyethylene 0.286 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Bonded Duofoil® 100 %
Braid 2 TC – Tinned Copper   90 %
Outer Jacket Material
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.405 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
0.9 Ohm/1000ft 1.8 Ohm/1000ft 1.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
24.6 pF/ft
Inductance
Nominal Inductance
0.059 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
5 MHz 0.4 dB/100ft
10 MHz 0.5 dB/100ft
50 MHz 1 dB/100ft
100 MHz 1.4 dB/100ft
200 MHz 1.8 dB/100ft
400 MHz 2.6 dB/100ft
700 MHz 3.6 dB/100ft
900 MHz 4.1 dB/100ft
1000 MHz 4.4 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 84 %
Power Rating
Frequency [MHz] Max. Power Rating [W]
5 MHz 4,021 W
10 MHz 3,217 W
50 MHz 1,609 W
100 MHz 1,149 W
200 MHz 894 W
400 MHz 619 W
700 MHz 447 W
900 MHz 393 W
1,000 MHz 366 W
Voltage
Non-UL Voltage Rating
600 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
Operating Temp Range: -40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 107 lbs/1000ft
Max Recommended Pulling Tension: 300 lbs
Min Bend Radius/Minor Axis: 4 in

Standards

CPR Euroclass: Eca
RG Type: 8/U Type

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 89913

Part Number

Variants
Item # Color UPC Length Footnote
9913 010100 Black 612825261636 100 ft C
9913 0101000 Black 612825261643 1,000 ft C
9913 010250 Black 612825261650 250 ft C
9913 010500 Black 612825261667 500 ft C
9913 0105000 Black 612825261711 5,000 ft C
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Recommend use of 7810R, 7810A, 9913F7, or 9914 for applications above 1 GHz.

History

Update and Revision: Revision Number: 0.273 Revision Date: 07-11-2019

Belden 9913 Specifications

  • Coaxial Cable Type: RG8
  • Conductor Area CSA: –
  • Conductor Material: Copper
  • Conductor Size AWG: 10 AWG
  • External Diameter: 10.287 mm
  • Impedance: 50ohm
  • Jacket Color: Black
  • Jacket Material: PVC (Polyvinyl Chloride)
  • No. of Strands x Strand Size: Solid
  • Reel Length (Imperial): 100 ft
  • Reel Length (Metric): 30.48 m
  • SVHC: No SVHC (20-Jun-2013)
