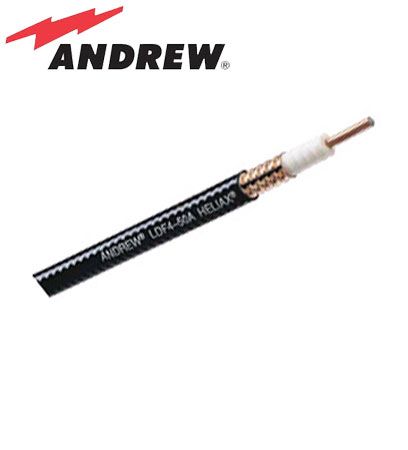

Kabel Andrew Heliax LDF4 1/2″ 50A
Detail Produk
Kabel Andrew Heliax LDF4 1/2″ 50 OHm merupakan Kabel Heliax dengan Foam Density Busa Rendah. KABEL LDF-4 HELIAX ANDREW, mempunyai tekstur tembaga bergelombang, Kabel Andrew Heilax ukuran 1/2 inch ini mempunyai jaket PE hitam (Jaket bebas Halogen, tahan api). Kabel Andrew Heliax LDF-4 Ukuran 1/2″ (0.5 Inch) produksi andrew commscope ini merupakan kabel standard utk perangkat Repeater & Radio Base Station.
Berikut utk Spesifikasi Produk Kabel Andrew Heliax LDF4 1/2″ Inch 50 Ohm sebagai berikut :
| Product Classification | |
| Brand | ANDREW HELIAX® |
| Product Series | LDF4-50A |
| Product Type | Heliax Wireless Cable |
| Standards And Qualifications | |
| EN50575 CPR Cable EuroClass | Fca |
| Construction Materials | |
| Jacket Material | PE |
| Outer Conductor Material | Corrugated copper |
| Dielectric Material | Foam PE |
| Flexibility | Standard |
| Inner Conductor Material | Copper-clad aluminum wire |
| Jacket Color | Black |
| Dimensions | |
| Nominal Size | 1/2 in |
| Cable Weight | 0.15 lb/ft | 0.22 kg/m |
| Diameter Over Dielectric | 12.954 mm | 0.510 in |
| Diameter Over Jacket | 15.875 mm | 0.625 in |
| Inner Conductor OD | 4.8260 mm | 0.1900 in |
| Outer Conductor OD | 13.970 mm | 0.550 in |
| Electrical Specifications | |
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 23.1 pF/ft | 75.8 pF/m |
| dc Resistance, Inner Conductor | 0.450 ohms/kft | 1.480 ohms/km |
| dc Resistance, Outer Conductor | 0.820 ohms/kft | 2.690 ohms/km |
| dc Test Voltage | 4000 V |
| Inductance | 0.190 µH/m | 0.058 µH/ft |
| Insulation Resistance | 100000 Mohms•km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 8800 MHz |
| Peak Power | 40.0 kW |
| Velocity | 88% |
| Environmental Specifications | |
| Installation Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| General Specifications | |
| Ordering Note | CommScope® standard product (Global) |
| Mechanical Specifications | |
| Bending Moment | 3.8 N-m | 2.8 ft lb |
| Flat Plate Crush Strength | 110.0 lb/in | 2.0 kg/mm |
| Minimum Bend Radius, Multiple Bends | 127.00 mm | 5.00 in |
| Minimum Bend Radius, Single Bend | 50.80 mm | 2.00 in |
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 50 |
| Tensile Strength | 113 kg | 250 lb |
| Note | |
| Performance Note | Values typical, unless otherwise stated |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 680–800 MHz | 1.13 | 24.30 |
| 800–960 MHz | 1.13 | 24.30 |
| 1700–2200 MHz | 1.13 | 24.30 |
| 2300–2700 MHz | 1.13 | 24.30 |
