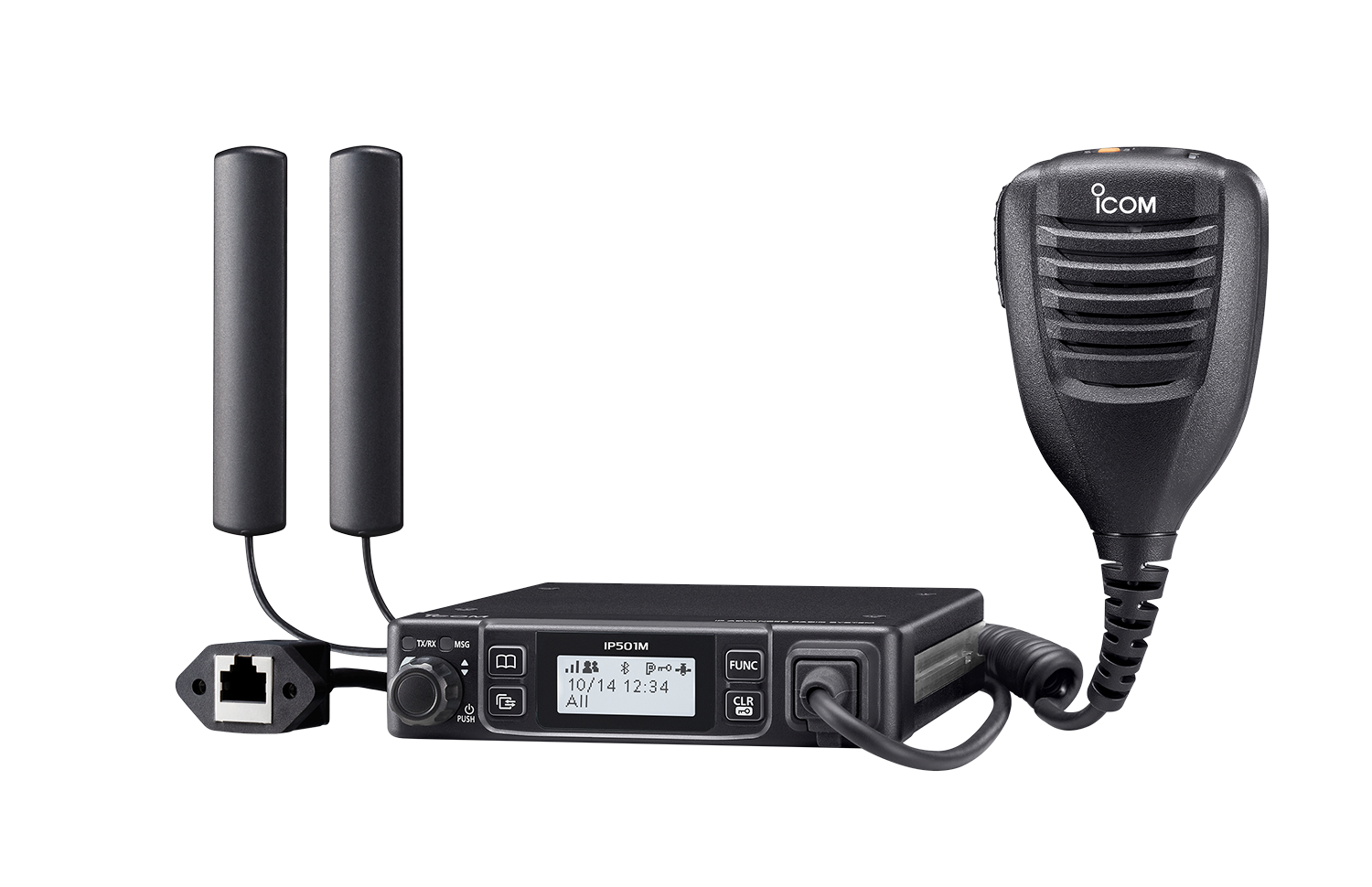

IP501M Mobile LTE Radio Interoperable
IP501M Mobile LTE Radio Interoperable
General
| Current drain (Maximum) |
TX | Less than 0.6 A (13.8 V DC) Less than 0.4 A (26.4 V DC) |
|---|---|---|
| RX | Less than 1.2 A (13.8 V DC) Less than 0.8 A (26.4 V DC) |
|
| Operating temperature range | –10°C to +60°C; 14°F to +140°F | |
| Dimensions (W × H × D) (Projections not included) | 125 × 29 × 156 mm; 4.9 × 1.1 × 6.1 in (Approximate) | |
| Weight | 840 g; 1.9 lb (Main unit, approximate) | |
| Voice codec | G. 726 | |
| Audio output power | More than 4 W (External SP, at 10% distortion into a 4 Ω load) | |
| External microphone impedance | 600 Ω | |
All stated specifications are subject to change without notice or obligation.
Interface
| Network | 4G bands | LTE B2, B4, B12 (USA) LTE B1, B3, B7, B8, B20 (EXP) LTE B1, B3, B5, B7, B8, B28 (AUS) |
|---|---|---|
| 3G bands | W-CDMA B2, B5 (USA) W-CDMA B1, B8 (EXP) W-CDMA B1, B5 (AUS) |
|
| Bluetooth®* | Version 2.1 +EDR | |
| LAN | RJ-45 type x 1 (Auto MDI/MDI-X) 10BASE-T/100BASE-TX |
|
| External speaker jack | 3.5 mm (1/8 in) (d), 4 Ω | |
| External equipment connector | D-SUB 25-pin type (The optional OPC-2407 is required) | |
* Version without Bluetooth also available. Ask your Dealer for details.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard |
MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standard | |
|---|---|
| Dust and Water | IP54 (Dust-protection, water resistance) |
Supplied Accessories
- HM-241, speaker microphone
- LTE antenna (2 pcs)
- GPS antenna
- DC power cable
- Mounting bracket kit
- Microphone hanger
Nationwide Coverage over LTE (4G) and 3G Networks*
Interoperable with the Handheld IP501H/IP503H
Simultaneous TalkListen Function for Full-Duplex Communication
The Simultaneous TalkListen function provides full-duplex one-to-many communication which users can talk and receive at the same time like a telephone style conversation.
Priority Interrupt Calling Can Break into an On-going Call for an Important Message
Text Message Function Allows You to Send and Receive Messages of up to 32 Characters
Safety Features with Emergency Call & Lone Worker Functions
An Ethernet Port for Data Communication*
D-SUB 25-pin Connector with the Optional OPC-2407 Cable for Interfacing Other Devices, Various Controls and Data Communication
ACC Connector for Ignition Sensing Function
Noise Canceling Function (TX only) for Clear Audio in Noisy Environments
Built-in Bluetooth®* and GPS
* Version without Bluetooth also available. Ask your Dealer for details.
Optional COMMANDMIC™ Provides a Handheld-like User Interface
Interconnection with the IP100H and IDAS™ Systems Using the VE-PG4, RoIP Gateway
With a VE-PG4 RoIP gateway, the LTE radio system can interconnect with an IP phone, IP, IDAS™ digital and analog radios.
