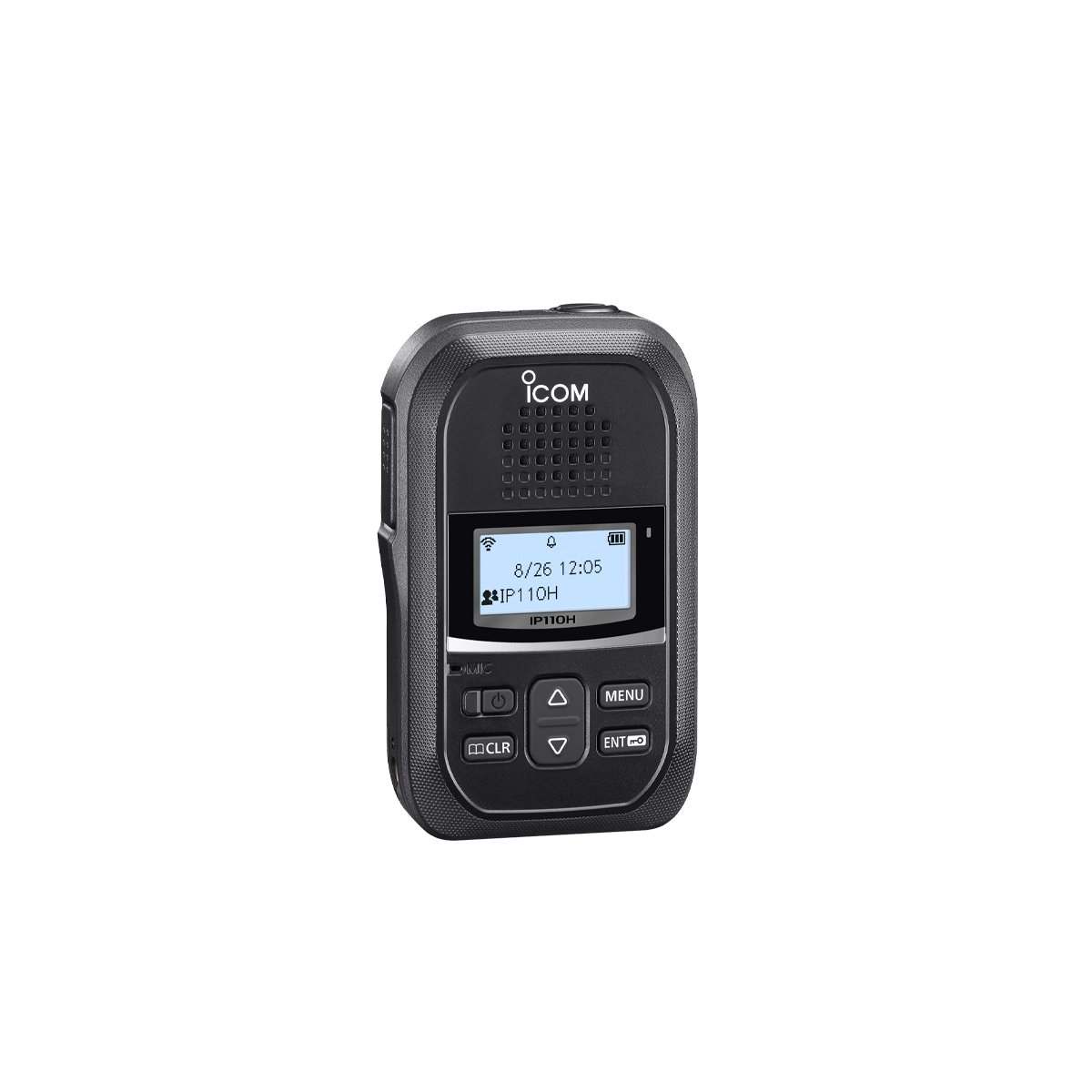

Icom IP110H WLAN Transceiver
Scalable System Using Wireless LAN Network
Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.
License-Free Communication
The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.
Communication with Dispersed Sites
When connected over the Internet VPN, an WLAN radios can communicate between dispersed sites.
Simultaneous TalkListen Function
The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.
TalkListen works with or without external headset.
IP110H Features
・All, Group, Talkgroup, Individual and Telephone Calls
・1000 mW loud audio from internal speaker
・Optional Bluetooth® headset, VS-3
・IP67 / IP54 waterproof and dust-tight
・Battery can be charged through the USB Type-C™ cable
・More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)
・WPA2, WPA-Enterprise security
・Other features
- Audio is recorded for instant review
- Vibration alert function
- Motion/Stationary detection, man down and lone worker functions
- Over-the-Air programming
- Compatible with the IP100H WLAN radio
Specifications
| IP110H | |
|---|---|
| Wireless Standards |
IEEE802.11 a/b/g/n/ac |
| Frequency Range *1 | 2.4–2.4835 GHz, 5.15–5.35, 5.47–5.85 GHz |
| Security | WEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK |
| AF Output Power | 1000 mW typ. (Internal SP) / 300 mW typ. (External SP) |
| Operating Temperature |
–10°C to +60°C, +14°F to +140°F |
| Charging Temperature | 0°C to + 60°C, + 32°F to + 140°F |
| Dimensions | 57 × 96.9 × 25.1 mm, 2.2 × 3.8 × 1.0 in (W × H × D; Projections are not included) |
| Weight (approximate) | 146 g, 5.2 oz |
| Operating Time | More than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio) |
| Charging Time | 4 hours (With BC-257 and BC-228) |
| Supplied Accessories | OPC-2480 USB charger cable, MBB-1 belt clip |
*1 Authorized frequency range and channels may differ depending on the country.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure |
500.5 |
I, II |
| High Temperature |
501.5 |
I, II |
| Low Temperature |
502.5 |
I, II |
| Temperature Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standard | |
|---|---|
| Dust & Water |
IP67 (Dust-tight and Immersion) |
