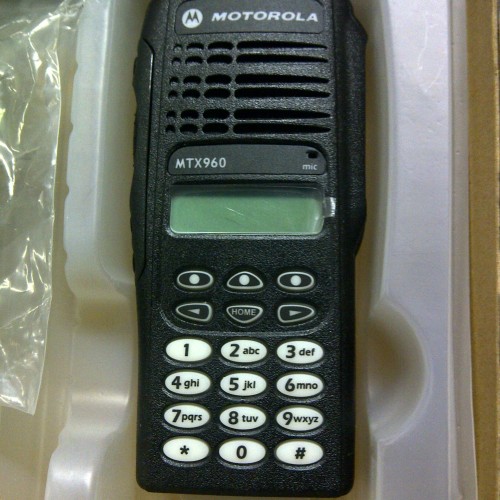

HT Motorola MTX-960 UHF
Detail Produk
HT Motorola MTX-960 dirancang untuk digunakan dalam Smartnet / SmartZone trunking sistem serta dilengkapi dengan baik Privasi Plus Roaming atau paket perangkat lunak SmartZone; menawarkan berbagai kemampuan untuk SmartZone Mobile Shared pengguna Radio untuk pengguna keamanan masyarakat umum untuk menyelesaikan tugas-tugas mereka yang unik.
Motorola MTX-960 merupakan handy talky yang mempunyai system trunking. Handy Talky tersebut banyak digunakan oleh Instansi Kepolisian, PLN, Pertmina maupun perusahaan Swasta.
Specifications HT Motorola MTX-960
| GENERAL | ||||
| Frequency band | 800 MHz | |||
| Frequency range: | 806-870 MHz | |||
| Channel spacing: | 6.25 kHz, 12.5 kHz, 25 kHz | |||
| Standard battery | Lithium ion | |||
| Battery life | 8-10 hours | |||
| (based on duty cycle 5 5 90) | ||||
| IP Standard | IP54 | |||
| Mile specs | 810 C, 810 D, 810 E, 810 F, 810 G | |||
| Operating temperature | -30ºC / +60ºC | |||
| Storage temperature: | -40ºC / +85ºC | |||
| Waterproof | IP54 . standard | |||
| TRANSMITTER | ||||
| Frequency Range/Bandsplits | 800 MHz | 806-870 MHz | ||
| Channel Spacing | 25/12.5 kHz | |||
| Maximum Frequency Separation | Full Bandsplit | |||
| Rated RF Output Power Adj1 | 1-3 Watts Max | |||
| Frequency Stability | ±0.00010 % | |||
| (-30°C to +60°C; +25°C Ref.) | ||||
| Modulation Limiting | ±5 kHz / ±4 kHz / ±2.5 kHz | |||
| Emissions (Conducted and Radiated) | -75 dB | |||
| Audio Response | +1, -3 dB | |||
| FM Hum & Noise | 25 kHz | -47 dB | ||
| 12.5 kHz | -45 dB | |||
| Audio Distortion | 25 kHz | 1.00% | ||
| 12.5 kHz | ||||
| TRANSMITTER CERTIFICATION | ||||
| 806-870 MHz | AZ489FT7049 | |||
| FCC Emissions Designators | 11K0F3E, 16K0F3E, 8K10F1D, 8K10F1E, 8K10F1W, 20K0F1E* | |||
| Power Supply | One rechargeable Li-Ion 1900 mAh battery standard with alternate battery options available. | |||
| RECEIVER | ||||
| Frequency Range/Bandsplits | 800 MHz | 806-870 MHz | ||
| Channel Spacing | 25/12.5 kHz | |||
| Maximum Frequency Separation | Full Bandsplit | |||
| Audio Output Power at Rated | 500mW | |||
| Frequency Stability | ±0.00010 % | |||
| (-30°C to +60°C; +25°C Ref.) | ||||
| Analog Sensitivity | 12 dB SINAD | 0.250µV | ||
| Digital Sensitivity | 1% BER (800 MHz) | 0.400µV | ||
| 5% BER | 0.250µV | |||
| Selectivity | 25 kHz channel | -76 dB | ||
| 12.5 kHz channel | -67 dB | |||
| Intermodulation | -75 dB | |||
| Spurious Rejection | -76.6 dB | |||
| FM Hum and Noise | 25 kHz | -53 dB | ||
| 12.5 kHz | -47 dB | |||
| Audio Distortion1 | 1.00% | |||
