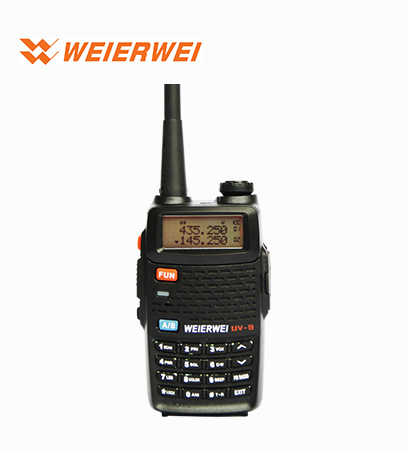

Handy Talky Weierwei UV-9

General Spesification Handy Talky Weierwei UV-9 :
Frequency Range
70-108MHz(FM Receive only)
136-174MHz
350-400MHz
400-470MHz

Channel No.128*2
Frequency Stability ±2.5ppm
Antenna High gain antenna
Antenna Impedance 50 ohm
Operating Voltage DC 7.2V
Mode of operation Simple or semi-duplex
Dimension (W x H x D) 100 x 52 x 32 mm
Weight 250g (including battery, antenna)
Transmitter
Output power 4W(H) 0.5W(L)
Modulation Mode 16k F3E / 11k F3E
Maximum deviation < 5kHz(Wide) / < 2.5kHz(Narrow)
Spurious Radiation < 7 µ W
Adjacent Ch. power -65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics 6dB
Current 1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion < 10%
Receiver
RF Sensitivity -122dbm(12db SINAD)
Audio power 0.5W
Audio Distortion ? 10%
Intermediation -65dB(Wide) / -60dB(Narrow)
Selectivity -65dB(Wide) / -60dB(Narrow)
Spurious Rejection -65dB
Blocking 85dBuv/m

Detail Produk:
MAIN FUNCTIONS

Tri-band, dual display, dual standby
A/B band independent operation
Scrambler
COMP
128*2 groups channels storage
FM radio and 25 stations storage
Wide/Narrow Band(25kHz/12.5kHz)
0~9 grades VOX selectable
Chinese/English voice prompt
CTCSS/DCS and scanning
1750Hz tone
PTT & ANI ID
Priority transmit selectable
0~9 grades squelch level setting
LED display mode
Keypad beeper setting
Transmit over beeper
Dual watch/monitor
Receive saving function
Auto keypad lock
Power-on display
Battery power voltage
Power-on message
Repeater offset function
Channel name display and setting
Reapter shift direction
VFO step function
Shortcut menu operation mode
Emergency Alarm
DTMF encoder & decoder
Remote skill/stun/activate(optional)
High/Low TX power selectable
Busy channel lock-out(BCLO)
Transmitter time-out timer(TOT)
Voice companding
Tri-color background light selectable
PC programmable
Wire clone
