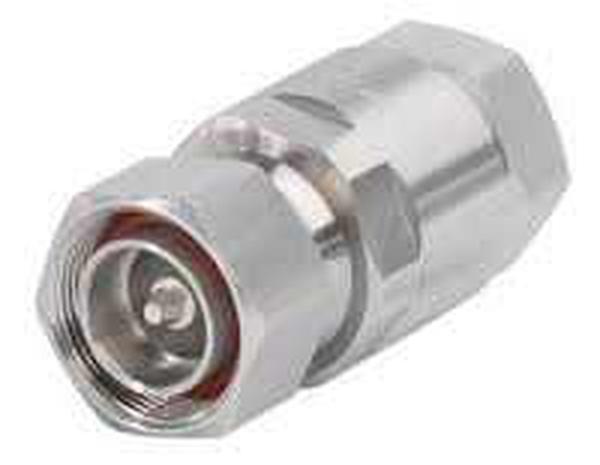

Connector DIN Male for AL5-50, AVA5-50

Konektor Andrew 7/8″ Inch L5PDM-RPC 7-16 Din Male merupakan konektor produksi Andrew Commscope. Konektor ini banyak digunakan utk Radio Komunikasi. Konektor Andrew 7/8″ Inch L5PDM-RPC 7-16 Din Male mempunyai kualitas yang sangat baik & bagus.

Berikut Untuk Spesifikasi Konektor Andrew 7/8″ Inch L5PDM-RPC 7-16 Din Male.
Connector DIN Male 7/8″ for AL5-50, AVA5-50 ANDREW DIN Male Positive Stop for 7/8″ AL5-50, AVA5-50. Ring- flare attachment with captivated center pin. Trimetal plated.

General Specifications:

• Interface : 7/8″ DIN Male
• Body Style : Straight
• Brand : EZfit®
• Harmonized System ( HS) Code : 854420 ( Coaxial cable and other coaxial electric conductors)
• Mounting Angle : Straight Electrical

Specifications:

• Connector Impedance : 50 ohm
• Operating Frequency Band : 0 – 5000 MHz
• Cable Impedance : 50 ohm
• 3rd Order IMD, typical : -116 dBm @ 1800 MHz
• 3rd Order IMD Test Method : Two + 43 dBm carriers
• RF Operating Voltage, maximum ( vrms) : 1415.00 V
• dc Test Voltage : 4000 V
• Outer Contact Resistance, maximum : 1.50 mOhm
• Inner Contact Resistance, maximum : 0.40 mOhm
• Insulation Resistance, minimum : 5000 MOhm
• Peak Power, maximum : 40.00 kW
• Insertion Loss, typical : 0.05 dB

Mechanical Specifications:

• Outer Contact Attachment Method : Clamp
• Inner Contact Attachment Method : Captivated
• Outer Contact Plating : Trimetal
• Inner Contact Plating : Silver
• Attachment Durability : 25 cycles
• Interface Durability : 500 cycles
• Interface Durability Method : IEC 61169-4: 9.5
• Connector Retention Tensile Force : 1334 N | 300 lbf
• Connector Retention Torque : 8.13 N-m | 72.00 in lb
• Insertion Force : 200.17 N | 45.00 lbf
• Insertion Force Method : IEC 61169-1: 15.2.4
• Pressurizable : No
• Coupling Nut Proof Torque : 24.86 N-m | 220.00 in lb
• Coupling Nut Retention Force : 1000.85 N | 225.00 lbf
• Coupling Nut Retention Force Method : MIL-C-39012C-3.25, 4.6.22

Dimensions:

• Nominal Size : 7/ 8 in
• Diameter : 37.21 mm | 1.47 in
• Length : 53.30 mm | 2.10 in
• Weight : 169.87 g | 0.37 lb
