Connector Andrew L4TNM PSA 1/2 Inch N Male

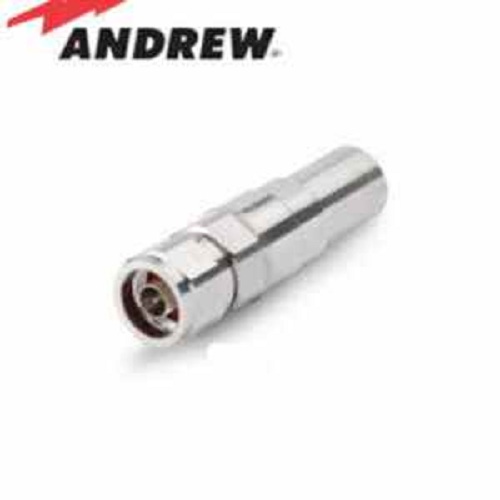

Konektor Andrew L4TNM-PSA N-Male Positive Stop™ for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable
| Product Classification | ||||
| Product Type | Wireless and radiating connector | |||
| Product Brand | HELIAX® | Positive Stop™ | |||
| Ordering Note | CommScope® standard product (Global) | |||
| General Specifications | ||||
| Body Style | Straight | |||
| Cable Family | AL4-50 | |||
| Harmonized System (HS) Code | 854420 (Coaxial cable and other coaxial electric conductors) | |||
| Inner Contact Attachment Method | Captivated | |||
| Inner Contact Plating | Silver | |||
| Interface | N Male | |||
| Mounting Angle | Straight | |||
| Outer Contact Attachment Method | Ring-flare | |||
| Outer Contact Plating | Trimetal | |||
| Dimensions | ||||
| Length | 76.71 mm | 3.020 in | |||
| Diameter | 22.35 mm | 0.880 in | |||
| Nominal Size | 1/2 in | |||
| Electrical Specifications | ||||
| 3rd Order IMD at Frequency | -116 dBm @ 910 MHz | |||
| 3rd Order IMD Test Method | Two +43 dBm carriers | |||
| Insertion Loss, typical | 0.05 dB | |||
| Average Power at Frequency | 0.6 kW @ 900 MHz | |||
| Cable Impedance | 50 ohm | |||
| Connector Impedance | 50 ohm | |||
| dc Test Voltage | 2000 V | |||
| Inner Contact Resistance, maximum | 2 mOhm | |||
| Insulation Resistance, minimum | 5000 mOhm | |||
| Operating Frequency Band | 0 – 8800 MHz | |||
| Outer Contact Resistance, maximum | 0.3 mOhm | |||
| Peak Power, maximum | 10 kW | |||
| RF Operating Voltage, maximum (vrms) | 707 V | |||
| Shielding Effectiveness | -130 dB | |||
| Return Loss/VSWR | ||||
| Frequency Band | VSWR | Return Loss (dB) | ||
| 45–1000 MHz | 1.03 | 39 | ||
| 1010–2200 MHz | 1.03 | 37 | ||
| 2210–3000 MHz | 1.05 | 33 | ||
| 3010–4000 MHz | 1.1 | 27 | ||
| 4010–6000 MHz | 1.26 | 19 | ||
| 6010–8000 MHz | 1.33 | 17 | ||
| Mechanical Specifications | ||||
| Attachment Durability | 25 cycles | |||
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf | |||
| – Torque | 5.42 N-m | 47.998 in lb | |||
| Coupling Nut Proof Torque | 4.52 N-m | 39.997 in lb | |||
| – Retention Force | 444.82 N | 100.000 lbf | |||
| – Method | MIL-C-39012C-3.25, 4.6.22 | |||
| Insertion Force | 66.72 N | 15.000 lbf | |||
| – Method | MIL-C-39012C-3.12, 4.6.9 | |||
| Interface Durability | 500 cycles | |||
| – Method | IEC 61169-16:9.5 | |||
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I | |||
| Environmental Specifications | ||||
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) | |||
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) | |||
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A | |||
| Immersion Depth | 1 m | |||
| – Test Mating | Unmated | |||
| – Test Method | IEC 60529:2001, IP68 | |||
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F | |||
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C | |||
| Vibration Test Method | IEC 60068-2-6 | |||
| Water Jetting Test Mating | Unmated | |||
| – Method | IEC 60529:2001, IP66 | |||
| Packaging and Weights | ||||
| Weight, net | 94.71 g | 0.209 lb | |||
