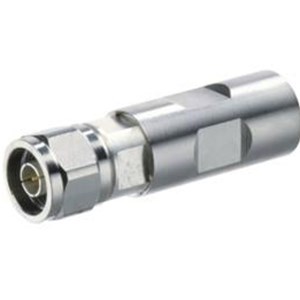

Connector Andrew L4PNM type-N Male, LDF4-50A
Konektor Andrew L4PNM N-Male berukuran 1/2 in banyak digunakan untuk Perangkat Repeater (Radio Pancar Ulang).
Spesifikasi Konektor Andrew L4PNM N-Male 1/2 In
| Product Classification | ||||
| Product Type | Wireless and radiating connector | |||
| Product Brand | HELIAX® | |||
| General Specifications | ||||
| Body Style | Straight | |||
| Cable Family | LDF4-50A | |||
| Inner Contact Attachment Method | Solder | |||
| Inner Contact Plating | Gold | |||
| Interface | N Male | |||
| Mounting Angle | Straight | |||
| Outer Contact Attachment Method | Self-flare | |||
| Outer Contact Plating | Trimetal | |||
| Pressurizable | No | |||
| Dimensions | ||||
| Length | 65.79 mm | 2.590 in | |||
| Diameter | 23.11 mm | 0.910 in | |||
| Nominal Size | 1/2 in | |||
| Electrical Specifications | ||||
| 3rd Order IMD at Frequency | -116 dBm @ 910 MHz | |||
| 3rd Order IMD Test Method | Two +43 dBm carriers | |||
| Insertion Loss, typical | 0.05 dB | |||
| Cable Impedance | 50 ohm | |||
| Connector Impedance | 50 ohm | |||
| Inner Contact Resistance, maximum | 2 mOhm | |||
| Operating Frequency Band | 0 – 8800 MHz | |||
| Outer Contact Resistance, maximum | 0.3 mOhm | |||
| RF Operating Voltage, maximum (vrms) | 707 V | |||
| Return Loss/VSWR | ||||
| Frequency Band | VSWR | Return Loss (dB) | ||
| 3.5–4.4 GHz | 1.16 | 23 | ||
| 45–920 MHz | 1.04 | 35 | ||
| 920–2700 MHz | 1.06 | 31 | ||
| 2700–3500 MHz | 1.11 | 26 | ||
| 4400–5300 MHz | 1.2 | 21 | ||
| 5300–6200 MHz | 1.23 | 20 | ||
| 6200–8800 MHz | 1.29 | 18 | ||
| Mechanical Specifications | ||||
| Attachment Durability | 25 cycles | |||
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf | |||
| Connector Retention Torque | 5.42 N-m | 47.998 in lb | |||
| Coupling Nut Proof Torque | 4.52 N-m | 39.997 in lb | |||
| – Retention Force | 444.82 N | 100.000 lbf | |||
| – Retention Force Method | MIL-C-39012C-3.25, 4.6.22 | |||
| Interface Durability | 500 cycles | |||
| Interface Durability Method | IEC 61169-16:9.5 | |||
| Environmental Specifications | ||||
| Attenuation, Ambient Temperature | 20 °C | 68 °F | |||
| Average Power, Ambient Temperature | 40 °C | 104 °F | |||
| Packaging and Weights | ||||
| Weight, net | 108.86 g | 0.24 lb | |||
OBSOLETE
Replaced By:
- L4TNM-PS: Type N Male Positive Stop™ for 1/2 in LDF4-50A cable
- L4TNM-PSA: Type N Male Positive Stop™ for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable
- RL4TNM-PS: Type N Male Positive Stop™ for 1/2 in RXL RADIAX® Radiating cable
Konektor Andrew L4PNM N-Male >>>>>>> Spec sheet (PDF)
