Supplier Antena Diamond Series seperti : Antena Diamond X700H, X520, X300, X50 (Dual Band Atenna), Antena Diamond F23H (Japan) VHF 144-174 MHz Antena Base Station, Diamond F23 VHF Antena, Diamond BC200LL (UHF LOW 320-380 MHz), Antena Diamond BC200L (UHF 370-430 MHz) , Antena Hustler Series dll.

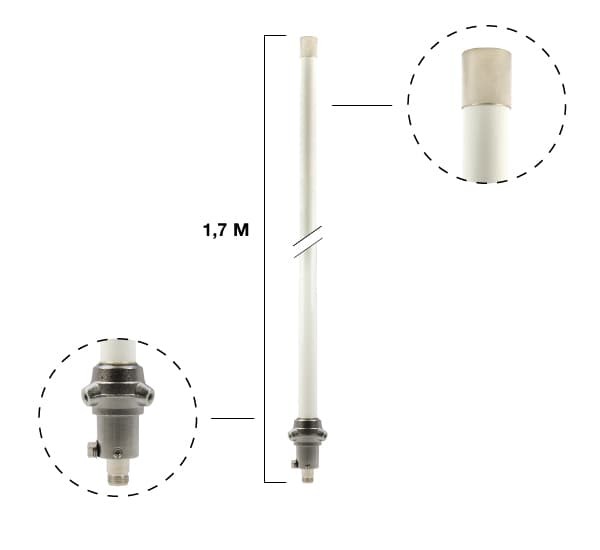

Specification X50A Dualband Base /Repeater Antena.
|
| The X50NA and X50A are excellent choices where ruggedness is required in a medium-gain, dual-band application. |
| |
| Special Features: |
• Fiberglass radome
• Stainless steel hardware
• Wide band performance
• Factory adjusted – no tuning required
• High wind rating
• DC grounded |
| |
| Specifications: |
|
| Band: |
2m/70cm |
| Gain (dB): |
4.5/7.2 |
| Max Power Rating: |
200 |
| Wind Rating: |
135 MPH (no ice) |
| Height (feet): |
5.6 |
| Connector: |
UHF |
| Element Phasing: |
3-1/4l, 3-5/8l |
| |
|
| Remarks: Also available with Type-N connection. |
|
