• Long-range operation (800 m)
• Smart long-range receiver
• Simple, intuitive manual slope capability
• ±10 Arc second horizontal accuracy
• Extra-long battery life (100 hours)
• Tough IP66 weatherproof rating

Specifications Topcon RL-H5A Rotating Laser Level

• Operating range Diameter Approx. 2 to 800 m (When using LS-80L)
• Accuracy ±10”
• Self-leveling range: ±5°
• Manual slope settable range ±5° (When the instrument is installed on the 0° surface)
• Laser source: Laser diode (Visible, 635 nm)
• CDRH (FDA) Class IIIa, IEC Class 3R
• Rotational speeds 600 r.p.m
• Status alerts HI and low battery
• Dust and water resistance IP66 (IEC60529: 2001)
• Operating temperature -20 to 50°C (-4 to 122°F)
• Size 104(W) x 127(D) x 37(H) mm
• Weight
• Dry battery type
• 2.3 kg (5.1 lbs) (with dry cell batteries)
• Rechargeable battery type
• 2.5 kg (5.5 lbs) (with BT-79Q)
• Power source/Operating time at 20°C (68°F) 4xD size dry cell batteries (alkaline) /100 hours
• Ni-MH battery pack BT-79Q (7000mAh) /60 hours

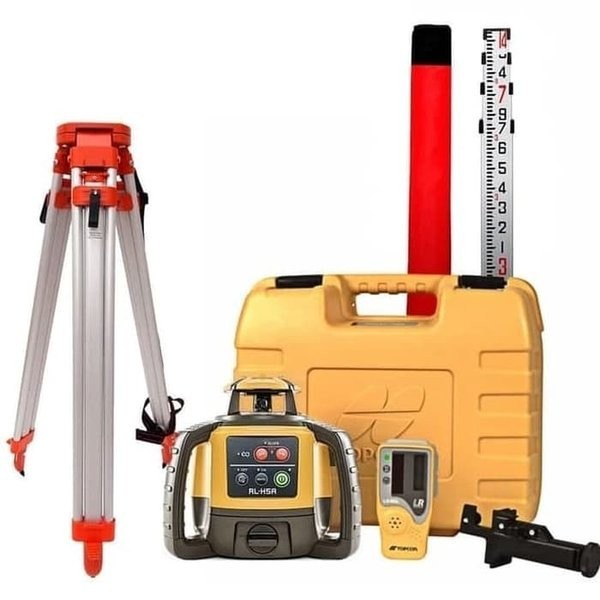

Package:

• Topcon RLH5A
• Aluminum Tripod
• Measure sign + level
• Sensors
• Battery Case
• AA battery
• Hardcase
