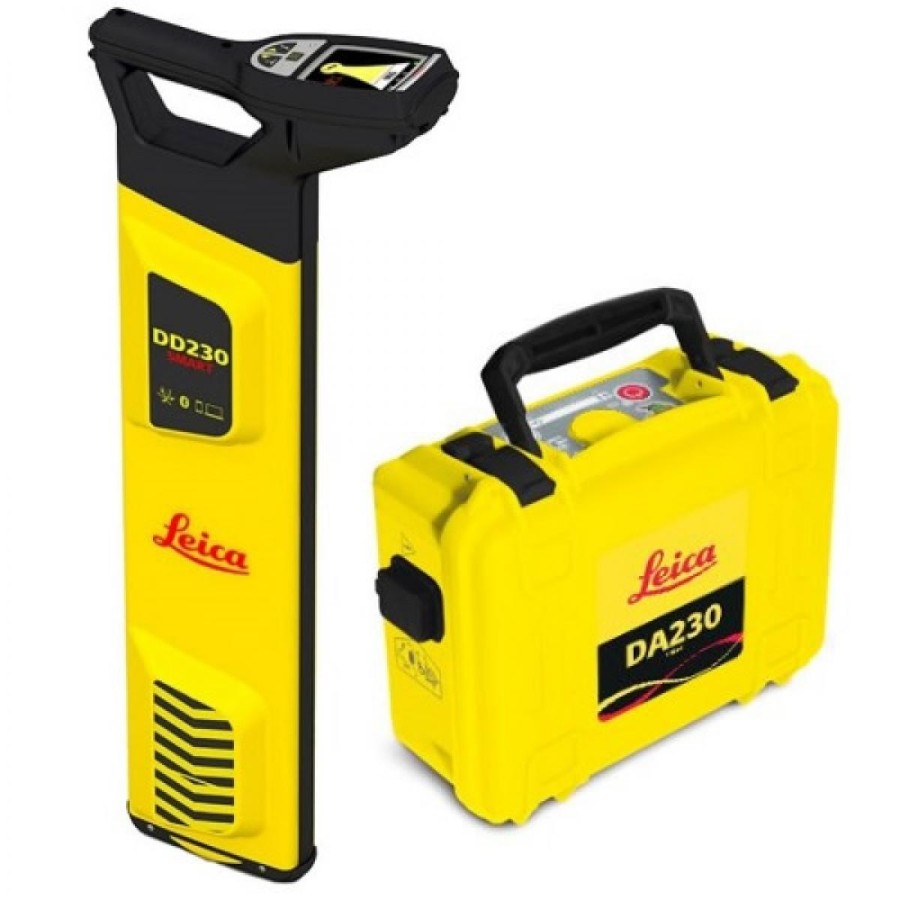

Leica DD230 Smart Locator

Features for the Leica DD200 Series Smart Utility Cable Locator

Choice of 4 models
Easy-to-use powerful underground locator
Identifies and detect buried utilities and cables
Depth range up to 23 feet
Automated pinpointing technology
Radio frequency: 15 to 60 kHz
Smart technology
Tracks power, radio, signal up to 33 kHz
Transmitter modes up to 4 modes
GPS feature with 5 types
Leica DX Shield software
8GB internal memory
Class 2 Bluetooth technology
IP66 dustproof and water resistant
7.4 Li-ion battery
Up to 20 hours of battery life
USB connectivity
Large colored display
Specifications for the Leica DD200 Series Smart Utility Cable Locator
General
Weight 6 lbs (2.7 kg)
Warranty 3 year
Depth Detection Line: 4” to 16.4’ & Sonde: 4” to 23’ (DD220); Line: 4” to 23’ & Sonde: 4” to 32.8’ (DD230)
Protection Class IP66 dustproof and water resistant
Operating Temperature -4 °F to +122°F (-20 °C to +50 °C)
Sensitivity N/A
Battery/Power
Battery Life Up to 20 hours
Low Battery Alert N/A
Power Source 7.4 V Li-ion
Wireless Capability
Bluetooth Yes
Memory 8 GB (internal)
Data Transfer N/A
Features
Display Large colored display
Audio Alert N/A
Visual Alert N/A
Sleep Mode/Auto Shut Off N/A
Security N/A
GIS Mapping Yes
Compatibility N/A
Applications
Pipe Location Yes
Cable Location Yes
Drain Location Yes
Frequency
Power Mode Yes
Radio Mode Yes
Transmitter Mode 131 kHz, 33 kHz, 8 kHz (DD220); 131 kHz, 33 kHz, 8 kHz, 512 Hz, 640 kHz (DD230)
Auto Mode Power, Radio, 33kHz
GPS Technology
Type GPS L1 C/A, SBAS L1 C/A, QZAA L1 C/A, GLONASS L1OF, BeiDou B1
Accuracy 5%
Start Time N/A
