Description
Leica Disto S910 Laser Distance Meter menampilkan teknologi LDM dan dapat mengukur jarak antara beberapa titik dari satu lokasi.
S910 Ini memiliki Basis Cerdas untuk lebih banyak opsi dan fungsi pengukuran. Itu dapat mengekspor data ke CAD. Dan memiliki konektivitas WLAN, Bluetooth®, dan USB.
Leica Disto S910 Laser Distance Meter
- Akurasi ± 1,0 mm / 0,04 in
- Rentang pengukuran 0,05 hingga 300m
- Satuan ukur m, ft, in
- Teknologi Daya X-Range
Sensor kemiringan
- Akurasi sensor kemiringan ke sinar laser -0.1 ° / + 0.2 °
- Akurasi sensor kemiringan ke housing ± 0,1 °
- Satuan di sensor kemiringan 0,0 °, 0,00% | mm / m, in / ft
Rentang pengukuran Smart Base
- Horizontal 360 °
- Vertikal −40 ° hingga 80 °
- Jarak dalam m 2, 5, 10 m
- Typ. toleransi fungsi P2P ± 2, 5, 10 mm
Specifications Leica Disto™ S910 Pro Pack Laser Distance Meter
| Typ. distance measuring accuracy | ± 1.0 mm / 0.04 in | |
| Range | 0.05 up to 300m / 0.16 up to 985 ft | |
| Measuring units | m, ft, in | |
| X-Range Power Technology | yes | |
| Distance in m | 10, 50, 100 m | |
| Ø of the laser dot in mm | 6, 30, 60 mm | |
| Tilt sensor | yes | |
| Tilt sensor accuracy to the laser beam | -0.1°/+ 0.2° | |
| Tilt sensor accuracy to the housing | ± 0.1° | |
| Units in the tilt sensor | 0.0°, 0.00 % | |
| mm/m, in/ft | ||
| Smart Base measuring range | ||
| Horizontal | 360° | |
| Vertical | −40° to 80° | |
| Distance in m | 2, 5, 10 m | |
| Typ. tolerance of the P2P function | ± 2, 5, 10 mm | |
| Levelling range | ± 5° | |
| Pointfinder with zoom | 4 × | |
| Additional overview camera | yes | |
| Picture file format | .jpg | |
| Memory for pictures | 80 | |
| CAD data format on device | .dxf | |
| Memory for CAD files on device | 20 files x 30 points | |
| Memory for last measurements | 50 | |
| Display illumination | yes | |
| Free software for Windows® | yes | |
| Free App for iOS and Android | yes | |
| General data interface | Bluetooth® Smart | |
| Data interface for 3D point data | WLAN | |
| Measurements per set of batteries | up to 4,000* | |
| Service life of batteries | up to 8 h* | |
| Multifunctional endpiece | pin | |
| Tripod thread | 1/4″ | |
| Batteries | Li-Ion rechargeable | |
| Charging time | 4 h | |
| Protection class | IP54 | |
| Dimensions | 164 x 61 x 32 mm / 6.46 x 2.40 x 1.26 (W x H x D) | |
| Weight with batteries | 290 g / 0.64 lbs |

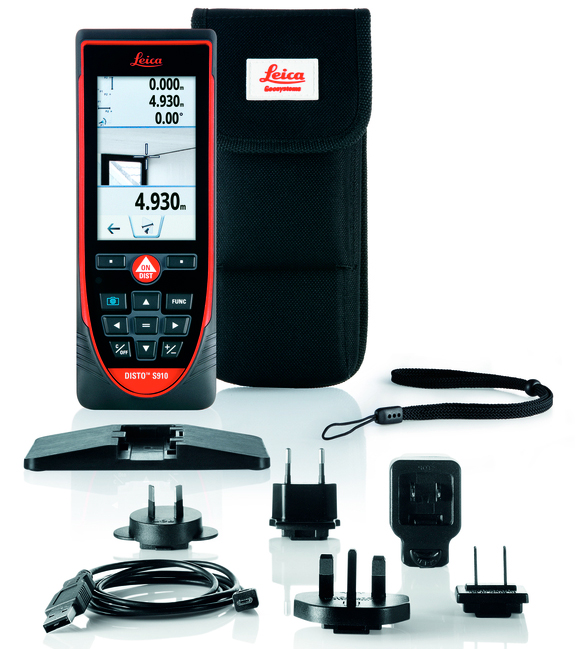

In the Box
- Leica DISTO™ S910 Pro Pack
- Smart Base Extension
- Holster
- Hand loop
- USB charger incl. 4 plugs
- Leica FTA360-S tripod adapter
- Leica TRI 70 tripod
- Carrying case
Leica Disto S910 Laser Distance Meter >>>>>> Spec sheet (PDF)
