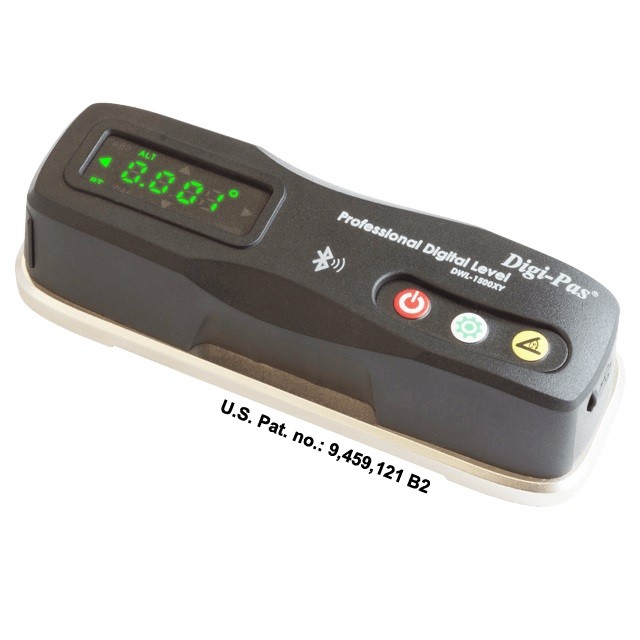

Digipas DWL-1500XY Smart Wireless Machinist Digital Level

Digi-Pas DWL-1500XY 2-Axis Smart Wireless Machinist Digital Level

Features
● MODE - Switch angle display between X & Y Axis.
● ALTERNATE ZERO SETTING - Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.
● ABSOLUTE LEVEL SETTING - Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
● USER SELF CALIBRATION - Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.● Menu-driven.
● "Digi-Pas Mechinist Level" APP (SMARTPHONE/TABLET) - Users may fully utilize Bluetooth mobile features for wireless levelling/alignment activities. One App is FREE to be redeemed for each purchase. Additional PAID Apps can be purchased from Apple and Google Stores. Each App works with the designated smartphone/tablet. Each App can connect with any device DWL1500XY (no restriction).

Specifications
Measuring Range : 0° - ±2.000° (Dual-Axis).
Resolution : 0.0002”/ft. or 5-second or 0.001°.
Accuracy : ± 0.0004”/ft. or ± 0.002° from 0° - 0.5°± 0.004° at other angles.
Repeatability : 0.0002”/ft. or 5-second.
Measurement Speed : ≤ 5 Sec.
Display Type : LED.
Power Supply* : 2 x AA 1.5V Batteries / USB.
Connectivity : Bluetooth (≤50 feet range).
Material : PC ABS / Zinc Alloy.
Operating Temperature : 10°F - 120°F or -10°C - +50°C (Calibrated for the entire temperature range).
Storage Temperature : -20°C to +60°C.
Dimension (mm) : 149 x 51 x 40.
Nett Weight (Approxiamate) : 580 gram.
