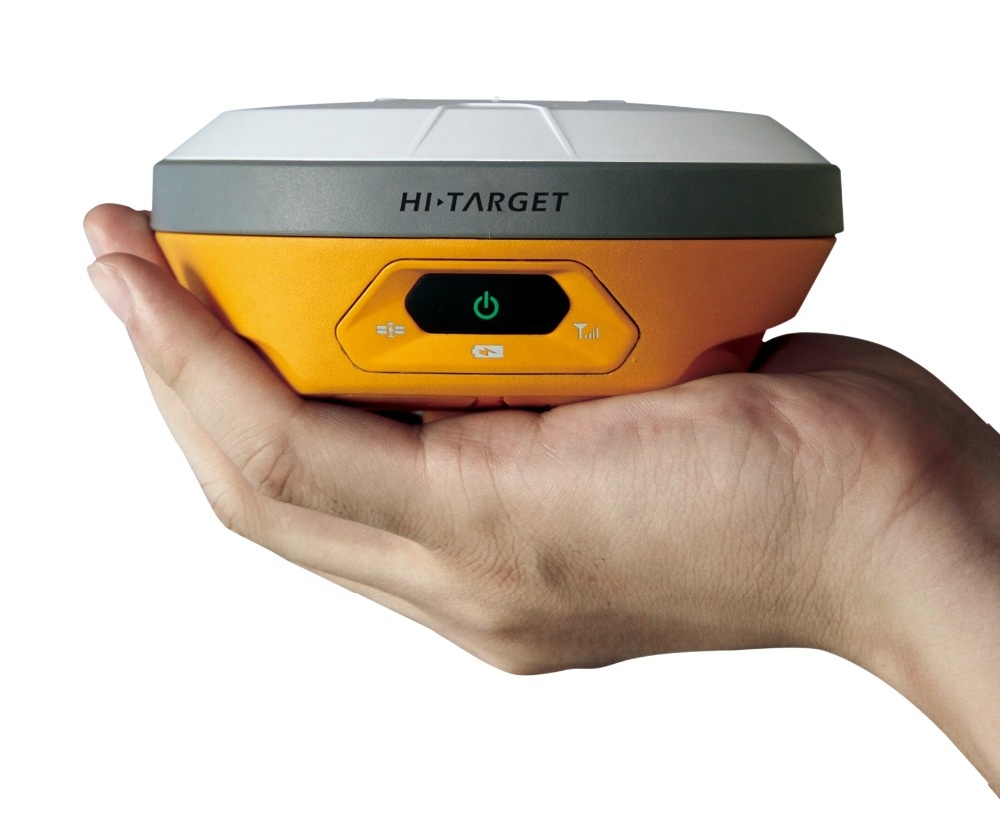

Hi-Target V100 GNSS RTK GPS Geodetic
Hi-Target V100 GNSS RTK GPS Geodetic dengan desain ultra-kompak, tetapi memberikan solusi survei yang efisien dan andal.
Hi-Target V100 adalah receiver GNSS RTK ultra-kompak dengan desain dan struktur yang indah. Ini memiliki teknologi konstelasi penuh multi-frekuensi, Bluetooth dual-mode dan NFC. Memberi pengguna solusi survei GNSS RTK yang cepat, efisien, dan andal.
Fitur Hi-Target V100 GNSS RTK
Pelacakan multi-rasi bintang
Ini mendukung sinyal satelit konstelasi penuh yang dilacak secara bersamaan dengan 220 saluran dan dapat memperoleh informasi lokasi yang stabil dan andal di berbagai lingkungan.
Komunikasi yang nyaman
Teknologi Bluetooth dan NFC mode ganda menyediakan cara yang nyaman untuk koneksi dan komunikasi dalam operasi lapangan.
Berbagai macam aplikasi
V100 dapat dipasangkan dengan berbagai perangkat genggam dan pengumpul data GIS, dan memberikan solusi yang mudah digunakan untuk survei dan profesional GIS yang perlu mengumpulkan data yang sangat akurat dalam berbagai aplikasi.
Specifications Hi-Target V100 GNSS RTK System
| Simultaneous tracking of satellite signals | ||
| Channels | 220 | |
| GPS | Simultaneous L1C/A, L2C, L2E, L5 | |
| GLONASS | Simultaneous L1 C/A, L1P, L2C/A (GLONASS M only), L2P | |
| SBAS | L1 C/A, L5 simultaneous | |
| Galileo | E1 BOC, E5A, E5B, E5AltBOCi (reserved )simultaneous | |
| BDS | B1, B2 | |
| QZSS | L1 C/A, L1 SAIF, L2C, L5 | |
| Accuracies | ||
| Real Time (RTK) Network RTK | ||
| Horizontal | 8mm + 1ppm RMS | |
| Vertical | 15mm + 1ppm RMS | |
| Initialization time | Typically 2-10s | |
| Initialization reliability | Typically > 99.9% | |
| Differential Code | ||
| Horizontal | 25cm + 1ppm RMS | |
| Vertical | 50cm + 1ppm RMS | |
| SBAS | 0.50m horizontal; 0.85m vertical | |
| High – Static Accuracy | ||
| Horizontal | 2.5 mm + 0.1 ppm RMS | |
| Vertical | 3.5 mm + 0.4 ppm RMS | |
| Static and Rapid Static | ||
| Horizontal | 2.5 mm + 0.5 ppm RMS | |
| Vertical | 5 mm + 0.5 ppm RMS | |
| Hardware | ||
| Physical data | ||
| Dimensions (width x height) | 127.5mm x 57mm (5.02in x 2.24in) | |
| Weight | 700 g without internal battery | |
| Operating temperature | -40°C to +65°C (-40°F to +149°F) | |
| Storage temperature | -40°C to +75°C (-40°F to +167°F) | |
| Humidity | 100% condensing | |
| Protection against water and dust | IP67, protected against temporary immersion to depths of up to 2m (6.56ft) | |
| Anti-shock | Designed to withstand free falls to concrete up to 3m (9.84ft) in height | |
| Food and Storage | ||
| Energy consumption | 3.2W | |
| Drums | 3.7V 6300mAh removable and rechargeable Li-ion battery, supports wired charging (without removing battery) | |
| Current input | 4.5V – 5.5V/2A DC(USB), 6V – 28V/ 2A DC(5pin) | |
| Storage | 8 GB of internal storage | |
| Battery Life | ||
| RTK | 7 hours (collector internet) | |
| I/O interface | ||
| 1x mini-USB port | Download data, power and firmware update | |
| 1 x port (5 pin) | NMEA output, DC power and external devices | |
| Communication | ||
| Bluetooth | BT 4.0 dual-mode, compatible with BT 2.1, 2.4GHz | |
| NFC | One touch Bluetooth connection | |
| Radio | Hi-Target/Pacific Crest ADL Vantage pro external radio (optional) | |
| Output formats | ||
| Output frequency | 1 Hz, up to 20 Hz depending on installed options | |
| Correction type | CMR: input and output CMR,CMR+, sCMRx | |
| RTCM: RTCM 2.1, 2.3, 3.0, 3.1, 3.2 input and output | ||
| ASCII Output Navigation | NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS and GBS |
|
| Binary Output Navigation | GSOF | |
