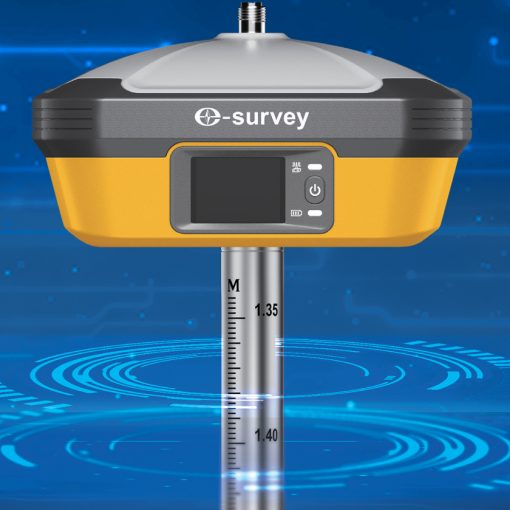

1. Built-in radio (5W) has up to 10km transmission distance, 410-470Mhz full-band, compatible with major transmission protocols.
2. Superior anti-interference ability enable stronger signal acquisition capability in harsh environments.
3. Built-in battery (13000mAh) for longer lasting operation.
4. Magnesium-aluminum alloy design for excellent heat dissipation.
5. Built-in 4G network module provides more stable network communication.
6.Color LCD display, multi-touch built-in Bluetooth, WiFi communication module compatible with multi-constellation satellites and more stable network communication.
7. Tilt survey : No calibration is required before measurement, the accuracy of coordinate data can be easily achieved within 30 ° tilt angle.
Specifications
| GNSS PERFORMANCE | ||
|---|---|---|
| Channels | 336 Trimble BD990 Board | |
| Satellite Constellations | GPS: L1CA / L1P / L1C / L2P / L2C / L5 GLONASS: G1 / G2, P1 / P2 BeiDou: B1 / B2 / B3 GALILEO: E1BC / E5a / E5b QZSS: L1CA / L2C / L5 / L1C L-Band SBAS: L1 CA/L5 |
|
| Update Rate | Up to 50Hz | |
| Static accuracy | Horizontal: 2.5mm + 1ppm RMS Vertical: 5mm + 1ppm RMS |
|
| RTK accuracy | Horizontal: 8mm + 1ppm RMS Vertical: 15mm + 1ppm RMS |
|
| POWER SUPPLY | ||
|---|---|---|
| Battery | Rechargeable built-in Lithium-ion battery 7.2V/13000mAh. | |
| Working time | UP to 12 hours | |
| Charging | 9~28V with external power DC | |
| PHYSICAL | ||
|---|---|---|
| Dimensions | 158mm*158mm*72mm | |
| Weight | 1.25 kg | |
| INTERFACE | ||
|---|---|---|
| 5-pin | Used to connect external power supply or external UHF radio | |
| Type-C | For direct charging, data transmission | |
| Sim card slot | For SIM card installation | |
| Voice | Support TTS voice calling | |
| Bluetooth | V2.1+EDR / V4.1 Dual Mode, Class2 | |
| WiFi | 802.11 b/g/n | |
| Internal UHF | TX (2/5W adjustable) & RX, up to 10km working distance | |
| Network | LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz |
|
| EXTRAS | ||
|---|---|---|
| Electronic bubble | Standard | |
| WORKING MODE – PROTECTION | ||
|---|---|---|
| Operation Temperature | -45℃ ～+65℃ | |
| Storage Temperature | -50℃ ～+80℃ | |
| Water/Dust Proof | IP 67 | |
| Shock | Survive a 2 m (6.6 ft) pole drop 1.2 m free fall | |
| Vibration | Vibration resistant | |
| Humidity | 100% condensing | |
