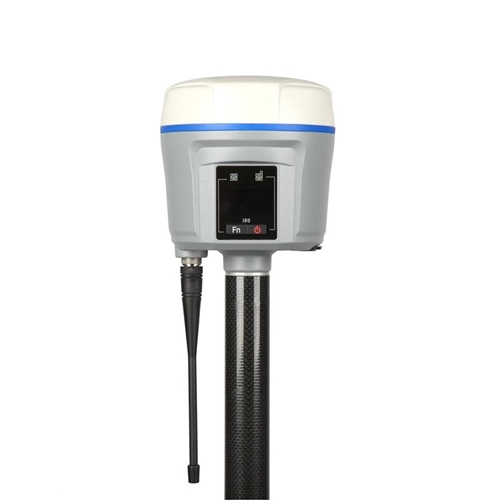

GPS Geodetik RTK CHC i80
Description
GPS Geodetik CHC i80 GNSS RTK adalah produk yang sempurna, dilengkapi dengan chirpset kualitas tinggi. mampu menangkap semua signal satelit GPS, GLONASS, Galileo, BDS, QZSS and SBAS. CHC i80 mampu menangkap sampai 220 chanel. dan menggunakan teknologi swapable battere.
Digabungkan dengan baterai hot-swappable ganda, i80 mampu bekerja terus menerus tanpa gangguan dan dianggap sebagai penerima GNSS terpintar di pasar. Modem jaringan 3.75G terintegrasi, modul Rx/Tx UHF, E-bubble, Bluetooth dan konektivitas WiFi memberikan solusi tanpa batas di lapangan. Panel LCD resolusi tinggi juga memanfaatkan metode baru bagi surveyor untuk memeriksa status kerja receiver. Semua fitur ini terintegrasi ke dalam paket kecil namun kokoh dapat membantu mencapai hari survei yang paling produktif.
CHC terus membangun reputasi keandalannya. i80 dibuat dari sasis magnesium cor dengan gasket tertutup ganda, konektor yang dilindungi, dan bagian internal yang diredam getaran. Ini berkontribusi pada ketahanan lapangan yang luar biasa dari IP67, kemampuan untuk menahan jatuhnya tiang 2 m ke beton dan lingkungan getaran tinggi.
Fitur CHC i80 GNSS RTK System
- 220 saluran penerima multi-konstelasi
- Panel LCD 128 64 dpi yang dapat dibaca di bawah sinar matahari
- Modem jaringan 3.75G
- TRx UHF internal
- Komunikasi Bluetooth dan WiFi bawaan
- Penerusan data RTK
- Baterai ganda yang dapat ditukar panas
- Memori internal 32 GB
Specifications GPS Geodetic CHC i80 GNSS RTK System
| GNSS Engine | Trimble BD-930 | fully enabled tracking | ||
| L2C, L5, GLONASS L3 | Precise RTK | |||
| CHC i80 GNSS | Magnesium case bottom | |||
| Internal UHF and GSM | ||||
| Dual-Hot-Swappable Batteries | ||||
| Recessed Serial and USB Ports | ||||
| Recessed UHF Ant Port | ||||
| Measurements | 220 Channels, 6 constellations, All-in-View Tracking Standard | |||
| GPS | L1C/A, L1C, L2C, L2E, L5 | |||
| GLONASS | L1 C/A,L1P, L2 C/A, L3 CDMA6 | |||
| Galileo | E1, E5A, E5B, E5AltBOC | |||
| BeiDou | B1, B2 | |||
| QZSS | L1 C/A, L1 SAIF, L2C, L5 | |||
| SBAS | L1 C/A, L5; WAAS, EGNOS, MSAS | |||
| 20-hz rate, low angle and Maxwell 6 Tracking | ||||
| RTK Performance1 | Horz | 8 mm + 1 ppm RMS | ||
| Vert | 15 mm + 1 ppm RMS | |||
| Post-Processing | Horz | 2.5 mm + 0.5 ppm RMS | ||
| Static Performance1 | Vert | 3.5 mm + 0.5 ppm RMS | ||
| SBAS Performance | Horz | 0.3 m RMS with WAAS in the United States | ||
| Vert | 0.5 m RMS with QZSS, EGNOS, GAGAN | |||
| GNSS Antenna | IGS Robotic Absolute type mean calibration ”CHCI80 NONE” | |||
| RTK Initialization4 | < 10 seconds, 99.9% reliability | |||
| TTFF | Signal Reacquisition | < 2 seconds (leaving full obstruction to clear sky) | ||
| (time to first fix)4 | Warm Start | < 30 seconds (ephemeris and last position known) | ||
| Cold Start | < 45 seconds (no ephemeris or known position) | |||
| Protocols | RTCM 2.3, RTCM 3.2, CMR, CMR+, sCMRx | |||
| NMEA 0183: GSV, AVR, RMC, HDT,VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS,GBS | ||||
| HCN and RINEX output for GNSS raw data | ||||
| Network | GSM Cellular; Wi-Fi Client, Data Collector Internet: NTRIP and DIP connections. | |||
| Communication | Wi-Fi: | 802.11 b/g/n | ||
| WWAN | Integrated GSM/GPRS modem: 3.75G, HSPA, EDGE, GPRS, GSM | |||
| SERIAL | One RS232 | |||
| USB | 7-pin LEMO | |||
| Bluetooth® | Integrated multimode Class 2. iOS, Android, Windows Mobile and Windows Desktop compatible. | |||
| UHF | Internal 1-Watt Satel Transmit / Receive UHF modem: 403-473 MHz; TrimTalk, EOTT, SATEL | |||
| Physical | Size | 4.8” diameter x 5.1” high; Weight: 2.2 lbs. empty, 3.3 lbs. with batteries | ||
| Operating temperature | -40°F to 165°F; Storage temperature: -40°F to 185°F | |||
| Humidity | 100% condensation | |||
| Waterproof and dust proof | IP67 protected from temporary, immersion, floats; MIL-STD-810F. Bottom case is single magnesium casting with a pressed stainless-steel 5/8” 11 TPI pole mount. | |||
| Shock | Survives a 3-meter drop to concrete; connectors mechanically protected by the case against impact. | |||
| LCD Display | 128 x 64 Sunlight Readable with Function and Accept buttons | |||
| Electrical | Power consumption | 3.2 watts as a rover; Lithium-Ion battery capacity: the i80 accepts two, hot-swappable 2 2.2 or 2.6 Ah, 7.4 V standard batteries | ||
| Battery Life2 | Up to 12-hours typical for a RTK rover, 1,000 charge cycles | |||
| External Power | input accepts 12 to 36 VDC, protected against reversed external power | |||
| Internal Storage | 32-GB Internal Flash | Over 400-days storage at 1 Hz, 16-years with 5-second epochs3 | ||
| Data Collection Software | Carlson SurvCE, SurvPC; LandStar, MicroSurvey FieldGenius | |||
| User Manual | Printed, full color; PDF: [ User Manual ] | |||
| Warranty | 1-year warranty | |||
GPS Geodetik CHC i80 GNSS RTK System >>>> Spec sheet (PDF)
