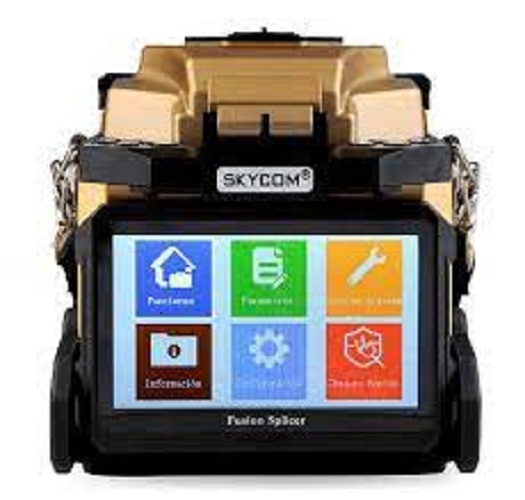

Fusion Splicer Skycom T308
Detail Produk
Skycom T308 Splicer T308 Skycom Fusion Splicer Splicing Splising
Skycom Fusion Splicer T308 Optical Fusion Splicer Splicing Machine
SPLICE ON CONNECTOR READY (SOC READY)
Lengkap aksesoris + Cleaver + Stripper + Spare Elektroda
SPESIFIKASI Skycom T308
| Model | Skycom T-308 |
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Drop Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Quick splicing time | 8 seconds |
| Quick heating time | 25 seconds |
| Protection Sleeve Length | 40mm, 45mm, 60mm |
| Splicing Program | 50 groups |
| Operating Language | Chinese, English, French, Portuguese, Spanish, Italian, Indonesian |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC input | AC adaptor: 100~240V input voltage, 50/60Hz; |
| DC input | 12V, 5A output voltage(DC) | |
| Battery | Inner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat | |
| Monitor | Dual cameras, 90 bi-dirctional view ,4.3 inches high resolution colorful LCD display | |
| Fiber Image Magnification | X or Y Separately 520 times or Simultaneously 220 times | |
| Estimated Splice Loss | Available | |
| Cleaving Angle Detection | Available | |
| Automatic Self-Check | Camera | Available |
| Forward Motor | ||
| Tension Test | 1.96~2.25N | |
| Storage of Splice Result | 6,000 groups of latest splice results | |
| Splicing Model | Auto & Manual & Full Auto & Stepping | |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector) | |
| Terminal | USB for Memorizing and Updating | |
| Dimensions | 120(W)*120(D)*130(H)mm | |
| Weight | 1.29kg(without battery ) | |
Standard Accessories
| No. | Item | Quantity |
| 1 | Machine T-308 | 1 |
| 2 | Fiber Cleaver | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor (Charger) | 1 |
| 5 | Battery | 1 |
| 6 | Spare Electrodes | 1 |
| 7 | Cooling Tray | 1 |
| 8 | Instruction CD | 1 |
| 9 | Quick Reference Guide | 1 |
| 10 | Rubber-insulated wire stripping pliers | 1 |
| 11 | Rubber-insulated wire 3-in-1 cutting fixture | 1 |
| 12 | Carrying Case with Carrying Strap | 1 |
Skycom is proud to present the T-308 series of Optical Fiber Fusion Splicer, which incorporate key performance features expected in an advanced next generation fusion splicer:
