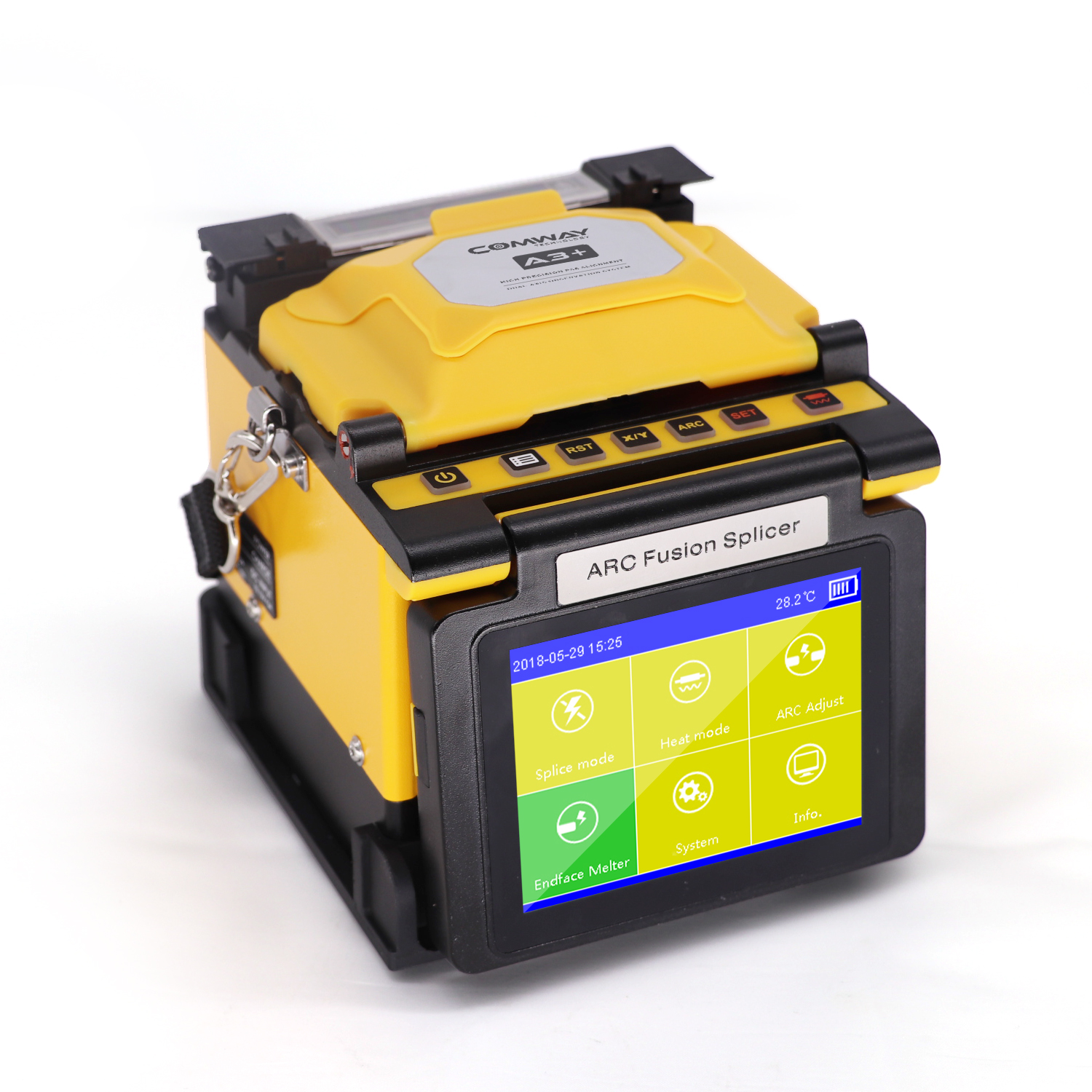

Fusion Splicer Comway A3+
Detail Produk
Comway A3+ adalah pelebur ujung serat dan pelebur ujung serat, semuanya dalam satu. Ini adalah alat yang ringkas dan kuat untuk serat optik SM, MM, DS, NZ, NSDS, BI, memiliki penyelarasan pelapis dengan alur V tetap, dan juga mencakup pemanas berkinerja tinggi dan penekan serat keramik.
Technical Parameter
| Fiber alignment | Core to core alignment |
| Fiber type | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ/NZDS(ITU-T G.655),BI(ITU-T G.657) |
| Splice mode | Single fiber |
| Fiber diameter | Cladding diameter 80~150μm, coating 100~3000μm |
| Cleave length | 250um cladding diameter 8~16mm,over 250um cladding diameter 16mm |
| Splicing programs | Max.200 |
| Splicing time | 5 sec.[SM Fsat] program, 10 sec.[SM G652] program |
| Heating programs | Max.30 |
| Heating time | 8s(Adjustable) |
| Splice protector | 10~60mm |
| Splice image capture | Max.800 |
| Splice data storagge | Max.20000 |
| Splice loss | SM:0.01dB, MM:0.01dB, DS:0.02dB, NZ/NZDS:0.02dB, BI:0.02dB,EB:0.02dB |
| Return loss | >>60dB |
| Fiber view | 4.3 inch high-light color touch screen |
| Operation condition | Altitude 0~5000m,Humidity 0~95%,Temperature -20~+50℃,Wind velocity up to 15m/s |
| Storage condition | Humidity 0~95%, Temperature -40~+80℃,(Battery -20~+40℃) |
| Fiber magnification | 300x for both X&Y dual axis view,750x for X or Y single axis view(zoom up) |
| Battery parameters | 6800mAhHigh capacity batterymore than 320 times splicing and heating |
| Port | High speed USB |
| Electrodes life | 5000 arc discharges |
| Power supply | AC 100-240V,50/60Hz |
