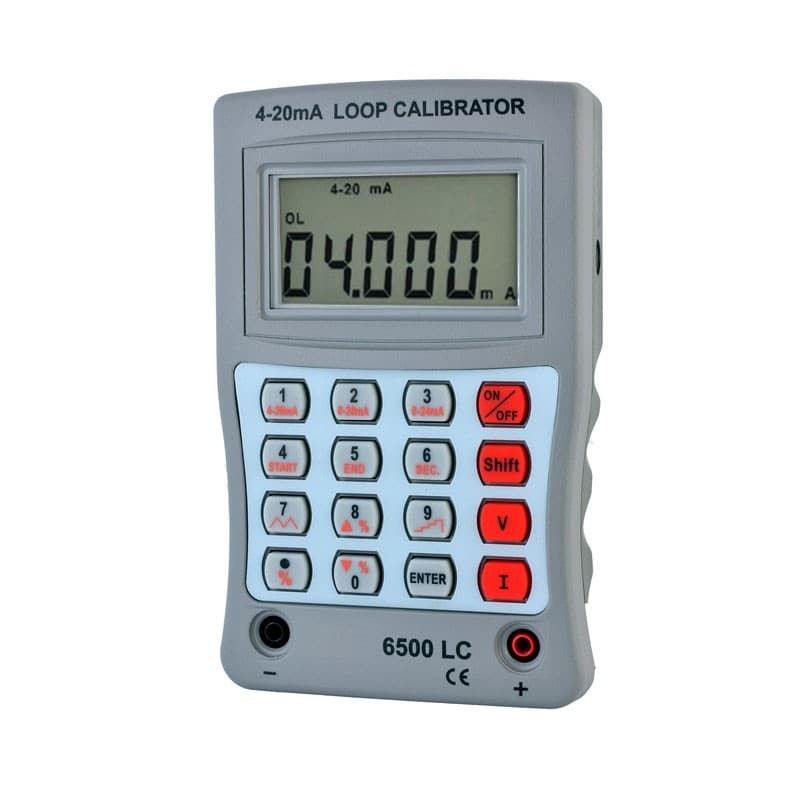

SEW 6500 LC 4-20mA Loop Calibrator

SEW 6500 LC 4-20mA Loop Calibrator

FEATURES
● 4-20mA (1kΩ load, 24V Loop Supply).
● 0.025% Basic Accuracy.
● Simple Operation Interface.
● Auto Ramp and Step Functions.
● 0-20mA, 0-24mA selectable.
● Incremental percentage setting : 0-100%.
● Warning beeper when output is open.
● 0-24V output.
● The minimum load of 20kΩ on voltage mode.

SPECIFICATIONS
DC Current (1kΩ Max Load, 24v Loop Supply)
Range : 0-4mA / 4-20mA / 20-24mA
Resolution : 1uA
Accuracy : ±0.025%±10uA / ±0.025%±5uA / ±0.025%±5uA
Beeper warning when output circuit is open and specified output voltage > 24V.
DC Voltage (Approx. 10MΩ load)
Range : 0-4V / 4-20V / 20-24V
Resolution : 1mV
Accuracy : ±0.05%±10mV / ±0.05%±5mV / ±0.05%±5mV
Beeper warning when voltage is short and specified output current is > 24mA.
General
Power consumption : 150mA at 24V 1kΩ load
Operating temperature : 0º C - 40º C
Operating humidity : ≤ 80% R.H.
Storage temperature : -10º C - 50º C
Storage humidity : ≤ 85% R.H.
Dimensions : 160(L) × 100(W) × 38(D)mm
Weight (battery included) : Approx. 350g
Power source : 9V(6LF22) × 1 Alkaline battery
Safety standard : EN 61326-1
