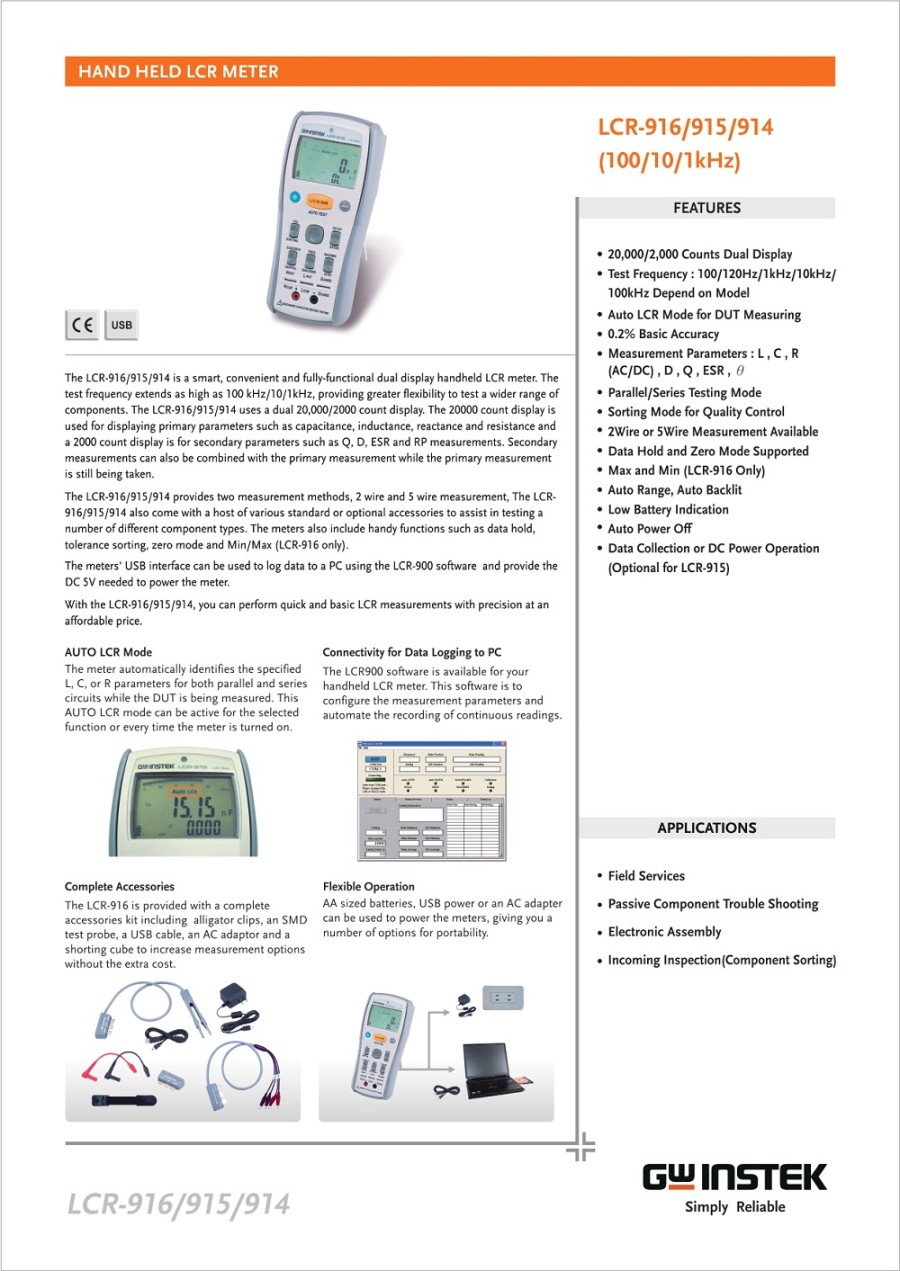

GW Instek LCR-915 Handheld LCR Meter
GW Instek LCR-915 Handheld LCR Meter
Features
• 20,000/2,000 Counts Dual Display
• Test Frequency : 100/120Hz/1/10/100kHz
• Auto LCR Mode for DUT Measurements
• 0.2% Basic Accuracy
• Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR
• Parallel/Series Testing Mode
• Sorting Mode for Quality Control
• 2Wire or 5Wire Measurement Available
Specifications
TEST FREQUENCY : 100Hz/120Hz/1k/10kHz Selectable
FULL SCALE
Main Display : 20,000/2,000 counts selectable
INDUCTANCE
Range : 20μH ~ 20kH depends on the selected test frequency
CAPACITANCE
Range : 20pF ~ 20mF depends on the selected test frequency
RESISTANCE
Range : 20Ω ~ 200MΩ depends on the selected test frequency
DC RESISTANCE
Range : 200Ω ~ 200MΩ
QUALITY FACTOR (Q)
Range : 0.000 ~ 999
DISSIPATION FACTOR (D)
Range : 0.000 ~ 999
PHASE ANGLE (θ)
Range : -90° ~ 90°
MEASUREMENT CIRCUIT : Parallel or Series selectable
AUTO LCR MODE : Automatically identifies and measures the DUT when the meter is switch on
SORTING MODE : +0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
OTHER FUNCTIONS : Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar
DISPLAY : LCD mono display
INTERFACE : USB
POWER SOURCE : AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)
DIMENSIONS & WEIGHT : 95(W) × 207(H) × 52(D) mm, Approx. 630 g
ACCESSORIES : User manual x 1, Battery x 1, Shorting Cube x 1, Alligator Clip Set x 1, Magnetic Hang Kit x 1
