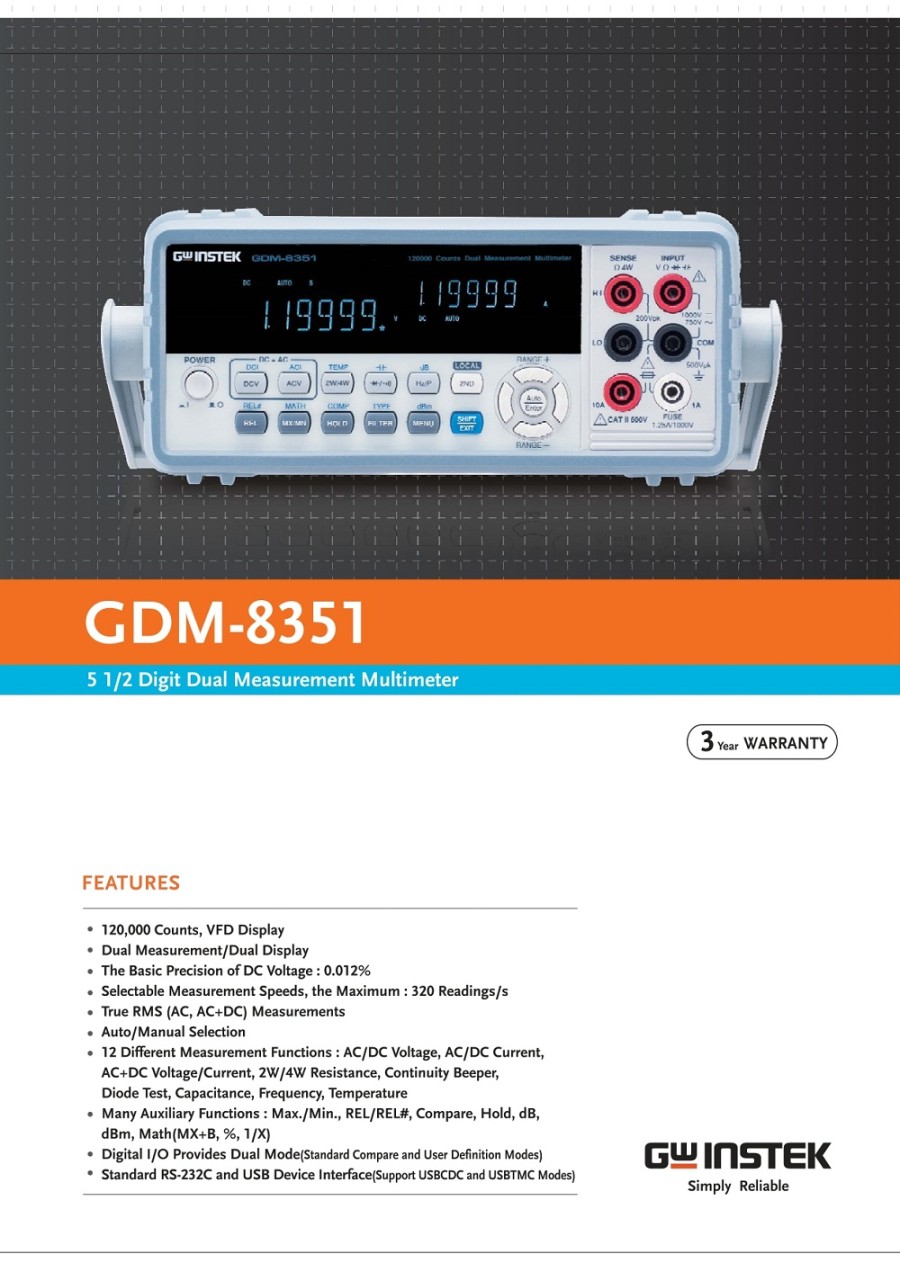

GW Instek GDM-8351 5 ½ Digit Dual Measurement Multimeter
GW Instek GDM-8351 5 ½ Digit Dual Measurement Multimeter
Features
• 120,000 counts, VFD display
• Dual measurement/Dual display
• The basic precision of DC voltage: 0.012%
• Selectable measurement speeds, the maximum: 320 Readings/s
• True RMS (AC，AC+DC) measurements
• Auto/manual selection
Specifications
DC Voltage :
*Range : 100mV – 1000V
*Resolution : 1µV
Resolution :
*Range : 100Ω - 100MΩ
*Resolution : 1mΩ
DC Current :
*Range : 10mA – 10A
*Resolution : 100mA
Continuity :
*Range : 100Ω
*Resolution : 100µV
Diode Test :
*Range : 6V
*Resolution : 100µV
Capacitance :
*Range : 10nF - 100µF
*Resolution : 0.01nF
True RMS AC (or AC+DC – AC Coupled) Voltage :
*Range : 100mV – 750V
*Resolution : 1µV
True RMS AC (or AC+DC – AC Coupled) Current :
*Range : 10mA – 10A
*Resolution : 100nA
Frequency :
*Voltage : 10Hz – 1MHz
*Current : 20Hz – 10kHz
Temperature (Thermocouple) :
*Range : -200°C to 300°C
*Resolution : 0.01°C
Display : VFD, Two Colors Display
Interface : RS-232C, USB device (USBCDC & USBTMC)
Power Source : AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz; Power Consumption Max. 15VA
Dimensions & Weight : 265(W) x 107(H) x 302(D) mm, approx. 2.9kg
Accessories : Safety Instruction Sheet x1, Power cord x1, Test lead GTL-207A x1, CD x 1 (including complete user manual, driver and software)
