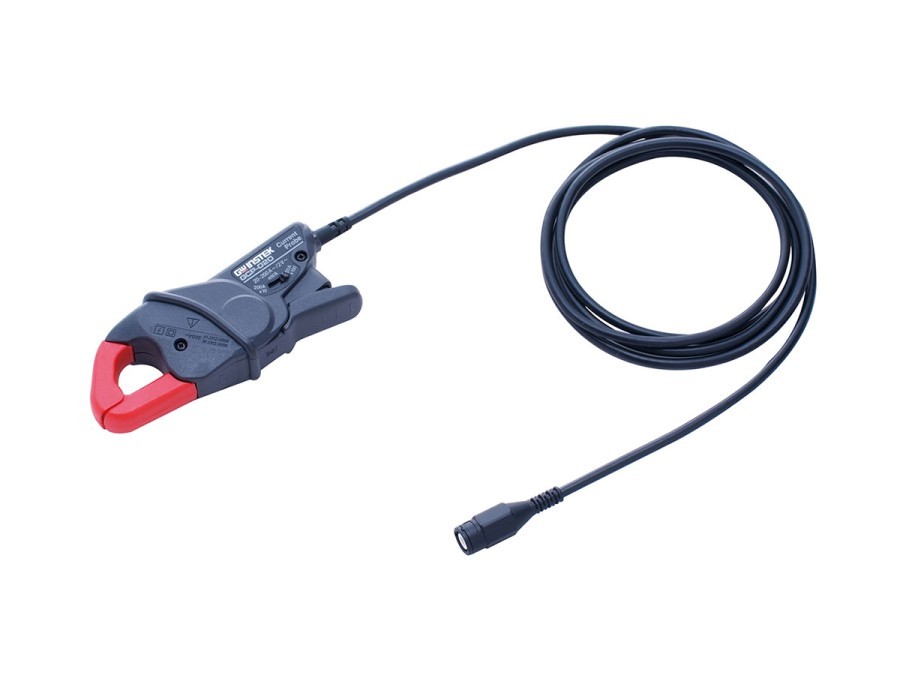

GW Instek GCP-020 10kHz/200A A.C./D.C. Current Probe

GW Instek GCP-020 10kHz/200A A.C./D.C. Current Probe
Features
• Bandwidth : 40Hz – 10kHz
• Measurement Range : 100mA – 20A and 500mA – 200A
• Accuracy : ≤ 2% (100mA – 20A); ≤ 1.5% (500mA – 200A)
• Jaw Opening : 21mm Diameter

Specifications
Bandwidth : 40Hz – 10kHz
Ratio : 100mA – 20A; 500mA – 200A
Accuracy : ≤ 2% (100mA – 20A peak); ≤ 1.5% (500mA – 200A peak)
Nominal Measuring Scope : 500mA – 200A and 100mA – 20A
Ratio Input/Output : 1A - / 10mV – and 1A - / 100mV
Sinusoidal Current : 48 – 65Hz
Connection : BNC
Direct Current : No
Temperature & Humidity Range (Guaranteed Accuracy) : 20 to 26°C, relative humidity; 20 to 75% (no condensation)
Continuous Magnetic Field : Earth Field (< 40A / m)
Proximity of External Conductors : No current
Measuring Device Impedance : > 1mW and < 100pF
Max. Clamping Capacity : Ø 20mm cable or 20 x 5mm bar
Location for Use : Altitude up to 2000m, Indoors
Dimensions : 135(W) x 50(H) x 30(D) mm
Open Jaw Height : 69mm
Weight : Approx. 180g
Jaw Opening : 21mm
