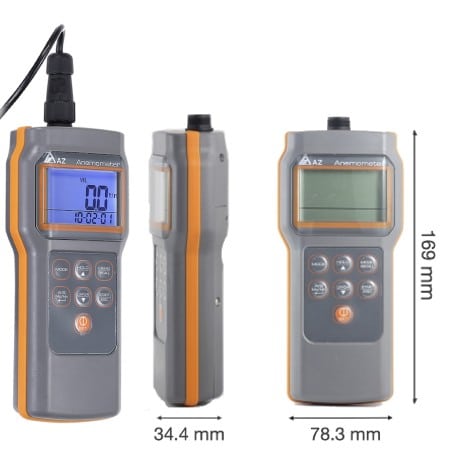

AZ Instrument AZ-8905 Anemometer Temp & RH
Portable 8905 AZ Wind Meter Anemometer dapat mengukur Kecepatan Udara, Kecepatan Udara, Volume Udara, Suhu, Kelembaban, titik embun dan suhu bola basah, yang merupakan pilihan terbaik sebagai perangkat pemantau kecepatan angin di HVAC (Pemanasan, Ventilasi, Pendinginan dan Air Conditioning) atau aplikasi terkait industri.
- Measures air velocity, volume, temperature, humidity, dew point & wet bulb temperature
- 18 mm mini vane probe with built-in temp. & humidity sensor
- 18 mm vane head with 1M long telescopic & scale marked tube
- Plug & lock mini vane probe connector
Application of 8905 AZ Air flow Measuring Devices
Portable AZ 8905 Wind Meter Anemometer can measure the Air Speed, Air Velocity, Air Volume, Temp., Humidity, dew point and wet bulb temperature, which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) or industrial related application.
The temperature and humidity sensors of AZ 8905 Thermal Anemometer are built in the external 18 mm mini, which could measure the low speed/velocity wind with high accuracy. The 8905 Hygrometer Anemometer has the 1055 mm extended van probe, which can insert to the high duct easily. The compact mini impeller is ideally designed for duct airflow. Duct temperature has no influence on airflow wind measurement.
AZ 8905 Air Velocity Meter This anemometer is a micro processor based design. A must device for HVAC engineers use. No need to whirl the meter or refer to the chart, easy to get wet bulb & dew point quickly! It was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument
Specification AZ Instrument AZ-8905 Anemometer Temp & RH
| Model | 8905 | ||
| Wind Speed Range | 0.5~20 m/s | ||
| Wind Speed Accuracy | ±(3% of reading+0.2 m/s) | ||
| Air Temperature Range | -20~60℃ | ||
| Air Temperature Resolution | 0.1℃, 0.1℉ | ||
| Air Temperature Accuracy | ±0.6℃ | ||
| Air RH% Range | 0.1%~99.9%RH | ||
| Air RH% Resolution | 0.1%RH | ||
| Air RH% Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) | ||
| Temperature Response Time | 60 seconds (typical) | ||
| Air RH% Response Time | 60 seconds (typical) | ||
| LCD Update | Every second | ||
| Wet Bulb Temp. Display | -20~59.9℃ | ||
| Dew Point Temp. Display | -20~59.9℃ | ||
| Air Volume Display | 0~99999 m3/minute | ||
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) | ||
| LCD Size | 54(L) * 32.5(W) mm | ||
| Operating Temperature | 0~50℃ | ||
| Operating RH% | Humidity ＜80% | ||
| Storage Temperature | -10~50℃ | ||
| Storage RH% | Humidity ＜90% | ||
| Meter Size | 169(L) * 78.3(W)* 34.4(H) mm | ||
| Weight | ~200g | ||
| Battery | AAA*6 PCS or 9V DC Adaptor | ||
| Optional Accessory | Replac |
