Hammer Test Digital TEM91
TEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence
Rebound hammer functions
estimated strength of the component according to the relevant testing specifications;2) 2.0-inch color LCD screen (220×176 pixels), the detection data can be clearly seen in any situation;3) The color digital module and mechanical rebound meter can be disassembled at will;4)Silicone button design, flexible use; ergonomic design, comfortable and warm heart; streamlined and elegant design, smile look
and feel;5) Support display in English;
6) Multiple data transmission modes, easy to operate, accurate and convenient;
7) The carbonization value of the measurement area can be input 3 times, and the average value is automatically calculated;
TEM91 Series DIGITAL TEST HAMMER automatically Record, Save, TEM91 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data. Calculate and Processing data.
Specification TEM 91 Digital Concrete Test Hammer |
|
|
Digital Parts
|
|
|
Display
|
2.0 inch(220×176 pixels)
|
|
Language
|
English Version
|
|
Output
|
Cable(Update version have WIFI,Bluetooth)
|
|
Storage Capacity
|
2000 pcs, 640 thousand data
|
|
Turn off
|
Automatic turn off without operation
|
|
Power supply
|
3.7V Lithium battery, 1050mA
|
|
Port
|
USB(update type Bluetooth and WIFI.)
|
|
Collection Mode
|
Automatic display and record dara
|
|
Size(mm)
|
150×62×39
|
|
Weight(kg)
|
0.1kg (including batterry)
|
|
Schmidt Hammer
|
|
|
Srandard impact energy
|
2.207J
|
|
Rigidity of tension spring
|
7.85N/m
|
TEM 91 is a device to measure the elastic properties or strength of concrete, mainly surface hardness. It automatically record rebound value, DM (Carbonation depth) input, and component strength calculate.(Update version have WIFI,Bluetooth)

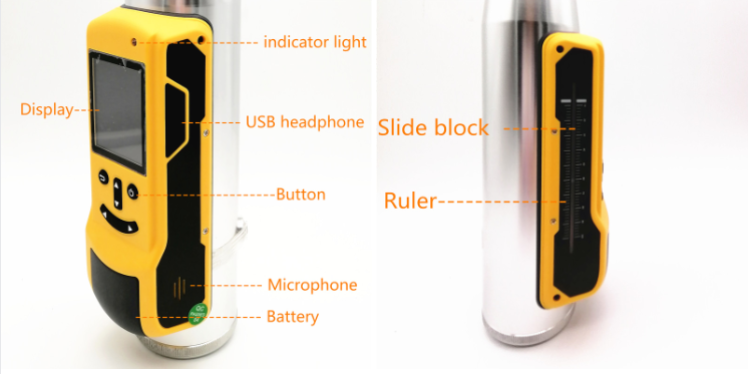

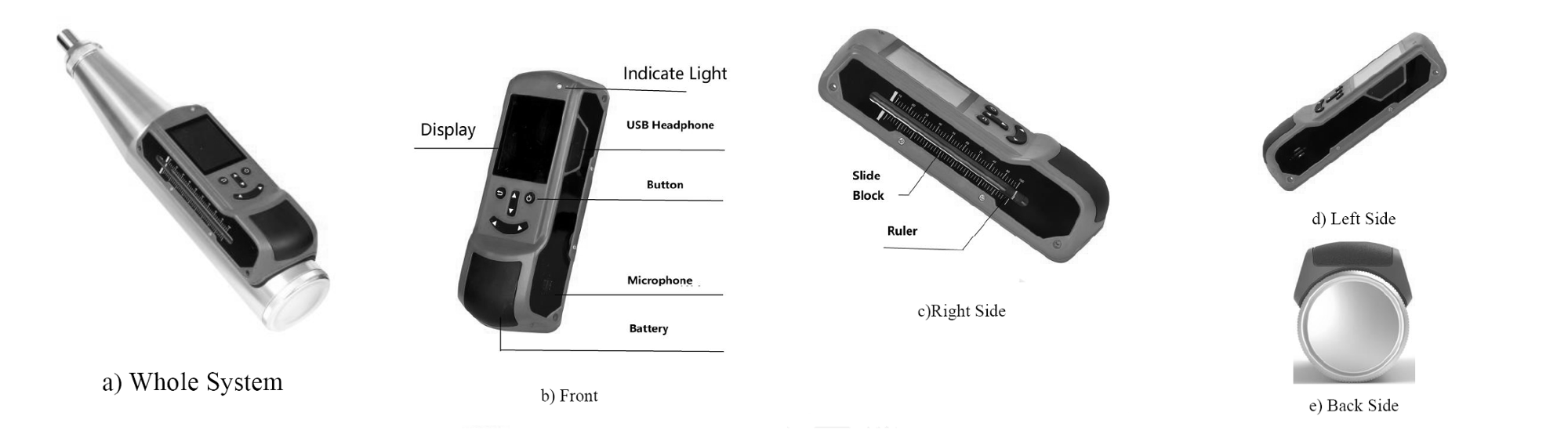

Details Images
